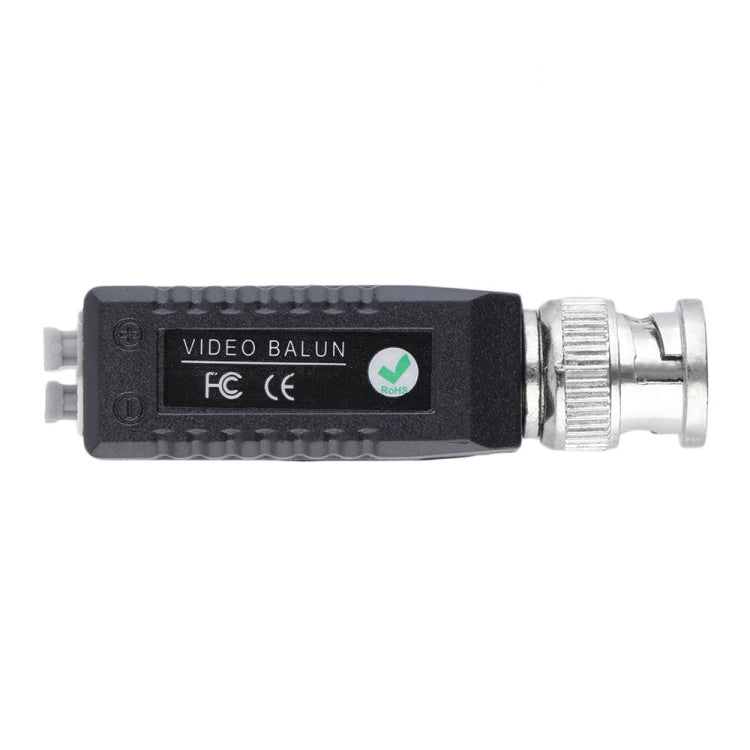

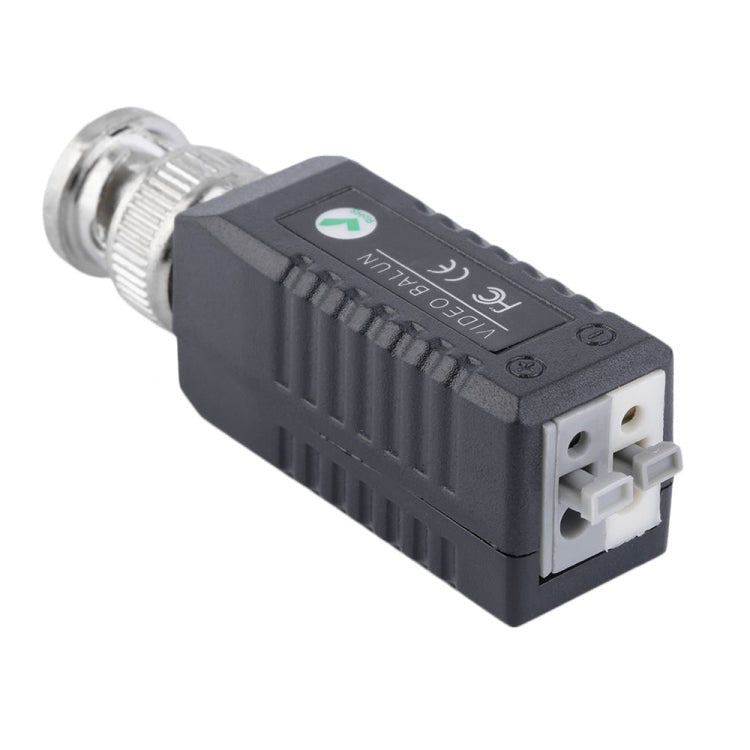

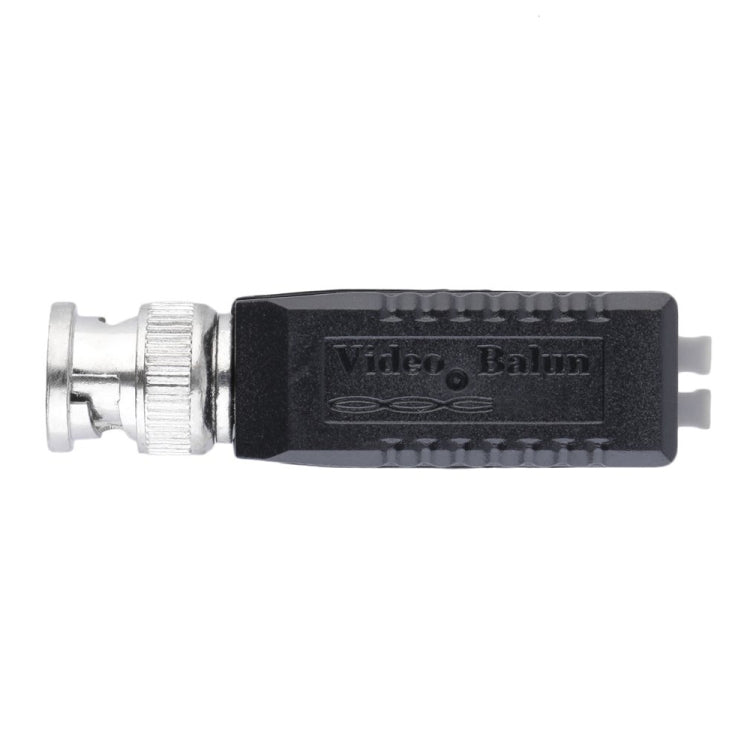

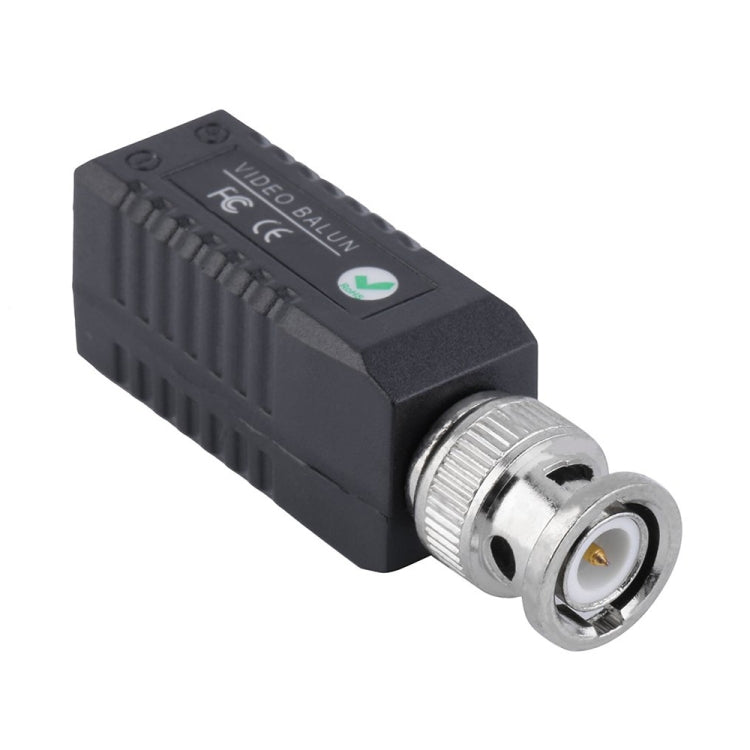

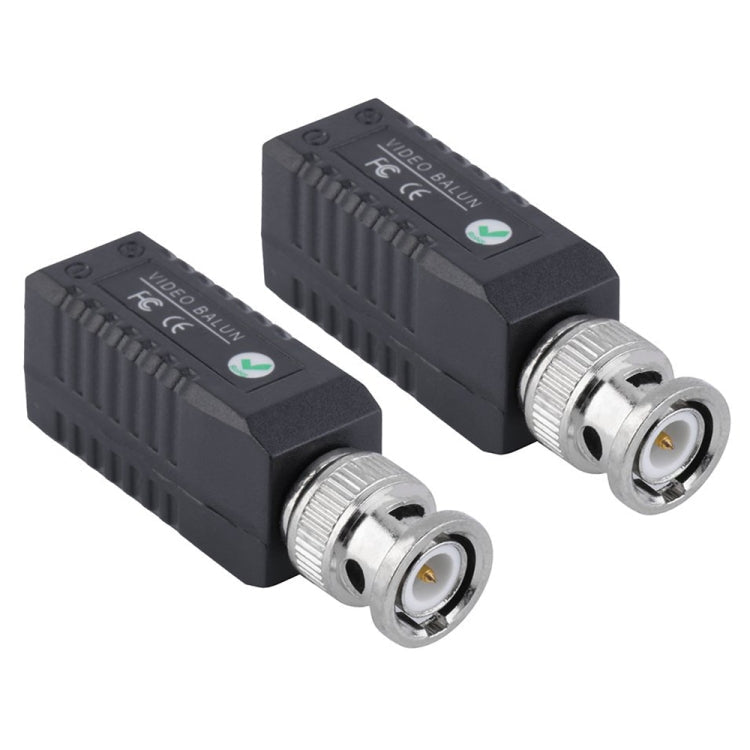

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver, 203A – Durable Build, Easy to Use

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver, 203A – Durable Build, Easy to Use.

Key Features:

• Features:
• Full-motion CCTV video at distances up to 330m when used with any passive transceiver
• Up to 1500 m with any active UTP video receiver
• Press-Fit terminal block
• NTSC, PAL, and SECAM video fornats
• No power required
• 60 dB crosstalk and noise immunity
• Compact size and easy installation
• Built-in transient suppression protection
• Specifications:
• Frequency response: DC to 8MHz
• Attenuation: 0.5 dB typ
• CMRR: 60dB
• Connectors: Male BNC and Press-Fit terminal blocks
• Impedance: BNC: 75 ohms, Terminal:100 ohms
• Working Temperature: -10 degree C to +70 degree C
• Storage Temperature: -30 degree C to +70 degree C
• Humidity: 0 to 95%
• Dimension: 39x16x19 mm (excluding connectors)

Package Info: Weight: 0.05kgs / 0.12lb

Shipping: Shipping charges and final delivery dates are shown at checkout.
