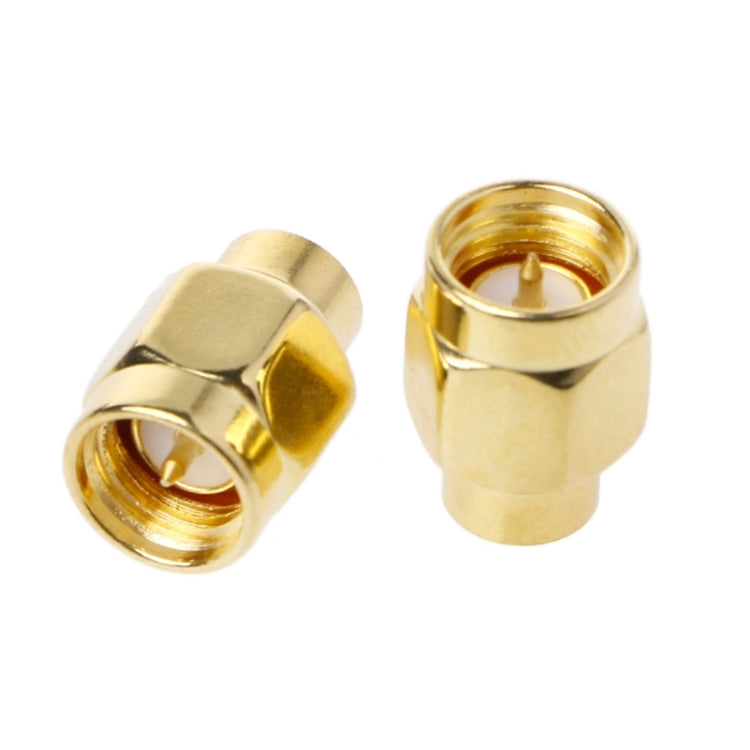

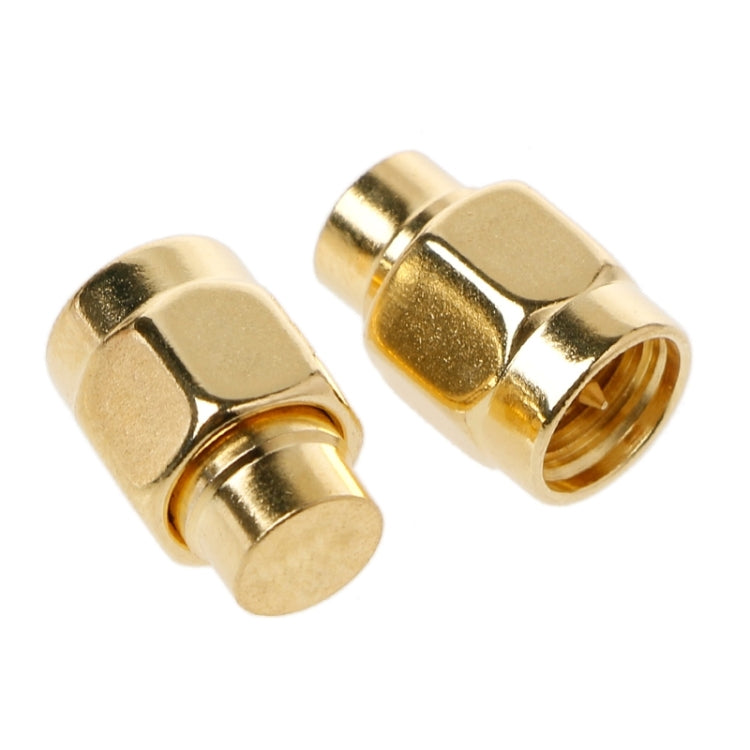

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load – Durable Build, Easy to Use

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load – Durable Build, Easy to Use.

Key Features:

• Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
• Vibration: Vibration MIL-STD-202, Method 213
• Characteristic Impedance: Impedance 50ohm
• Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
• Operating voltage: Working Voltage 335V max (RMS)
• Pressure: Withstand Voltage 1000V rms (sea level minimum)
• Contact resistance: Contact resistance
• Between the inner conductors: Center Contact <= 3M ohm
• Outside conductor: Outer Contact <= 2M ohm
• Insulation resistance: Insulation resistance >= 5000M ohm
• Insertion loss: <=0.15 dB / 6 GHz
• Voltage Standing Wave Ratio:
• - Straight: Straight Soft Cable <=1.10 + 0.002f
• Semi-Rigid Cable <=1.05 + 0.001f
• - Curved: Right angle soft cable <=1.20 + 0.003f
• semi-rigid cable <=1.10 + 0.001f
• Durability (Dating (mating): >= 500 times (cycles)

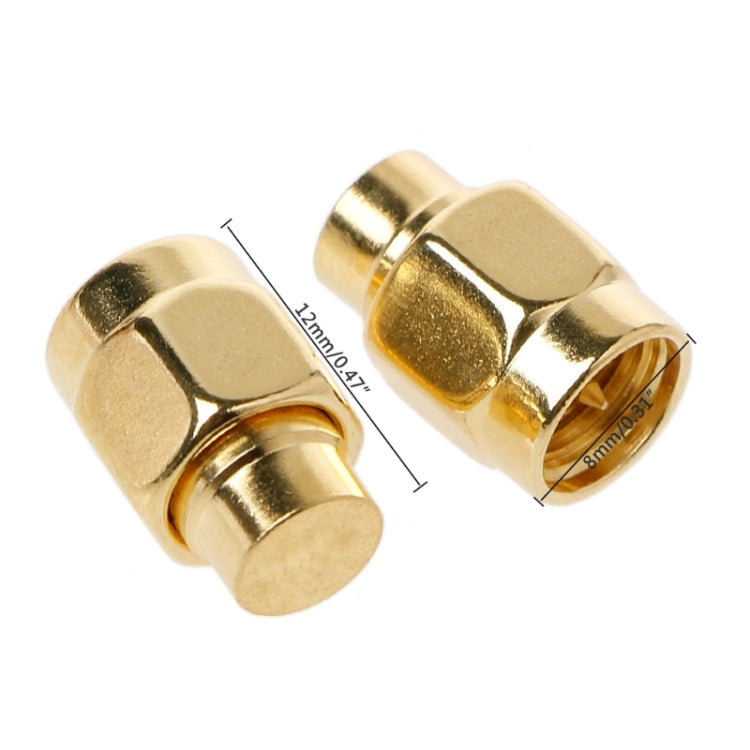

• Size:12x8mm/0.47x0.31

Package Info: Weight: 0.02kgs / 0.05lb, Size: 2.5cm * 1cm * 1cm / 0.98inch * 0.39inch * 0.39inch
