Tech2 Vehicle Chassis Power System Inspection Scanner, US Plug – TPU, For 1991-2013 GM 33.004, For 1998-2012 SAAB 148.000, For 1999-2012 Holden 147.000, For 1999-2013 Holden Export 149.000, For 1996-2013 Isuzu K-line 11.530

Tech2 Vehicle Chassis Power System Inspection Scanner, US Plug – TPU.

Key Features:

• Language: English
• Original software with powerful and comprehensive testing capabilities for testing powertrains, bodywork, and chassis (For Windows XP only, Note: The...
• Upgradable hardware ensures the instrument remains current
• Large screen with bright backlight

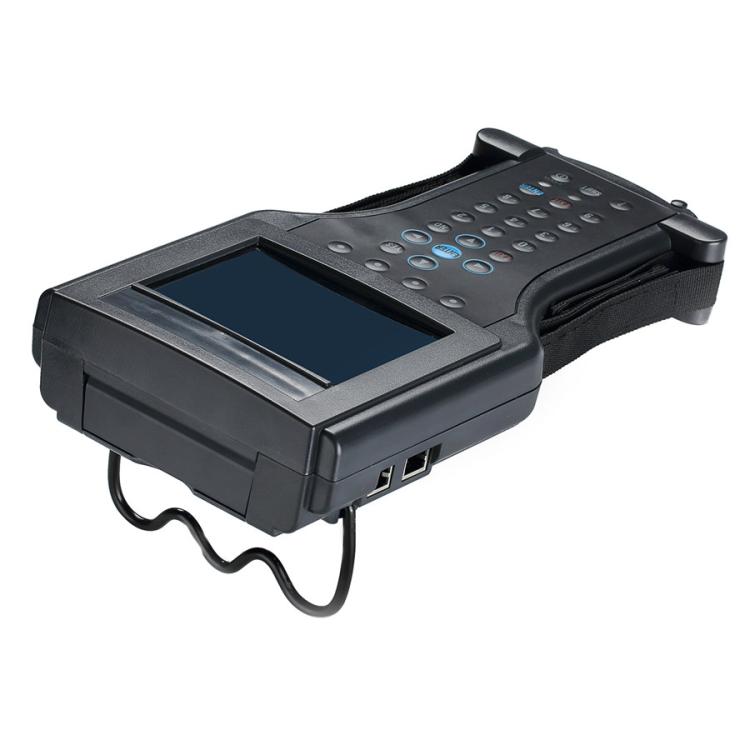

• RS232 and RS485 ports for connecting to a computer or other instruments
• Stores and replays fault codes, locks data boxes, and fault logs
• Allows viewing of vehicle diagnostic test status during road tests
• User-friendly button layout for easy operation
• Uses a 32MB card for large capacity and easy upgrades
• Connects to a CANdi module for testing vehicles equipped with a CAN system (optional)
• Technicians can use the maintenance programming system to reprogram and configure the computer on vehicles manufactured after 1993. This requires a...
• Operation steps are as follows:

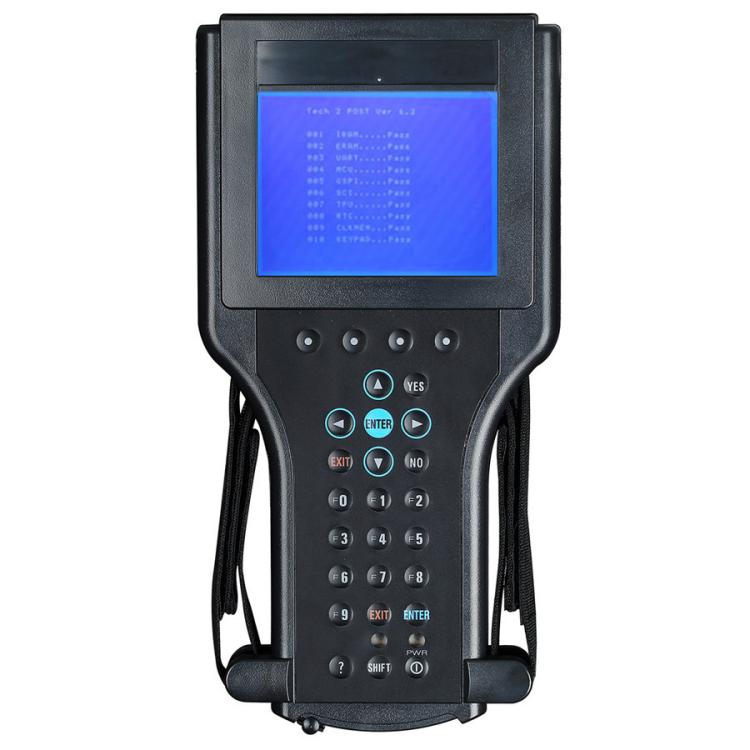

• Power on the instrument. The instrument will enter self-test mode, and the screen will display "SYSTEM INITIANLIZING" for approximately 4 seconds. The...
• Press the Enter key to enter the main menu. The screen will display: F0 - Diagnostics, F1 - Service Program System, F2 - Display Capture Data, F3 - Tool...
• Use the up and down cursor keys to select the target and press the Enter key to confirm.
• Select the F0 function to enter the vehicle specifications option. Use the cursor keys to select the model year. Press the Enter key to enter the vehicle...
• Move the cursor to F0 and press Enter to enter the engine type selection. You can choose between the 3.2L V6G8 and 3.1L V6L82 models. Select the former and...
• Select DTC and press Enter to enter the diagnostic code function: F0 - DTC Information, F1 - Failure Log, F2 - Clear DTC, F3 - Capture Information.
• Move the cursor to F0 and press Enter to confirm. The following screen appears: F0 - DTC Information, F1 - View DTCs (Special DTCs), F2 - Clear DTC Log, F3...
• Move the cursor to select F0 and press Enter to confirm. The fault code will be displayed. Use the cursor keys to turn pages; or press the corresponding...
• Return to "7," select F1 and press Enter to confirm. The fault query interface will be displayed. You can now enter the fault code to query the...
• Return to "6," select F1 and press Enter to confirm. The fault code will be displayed.
• Return to "6," select F2 and press Enter to confirm. The screen will prompt: "Are you sure you want to clear?" (Y/N). Press Y to clear, or N to cancel.
• Return to "6," select F3 and press Enter to confirm. The screen will display: "Recapture information," "Repeat display," and "Are you sure you want to...
• Return to "5", select F2, and press Enter to confirm. The screen displays: Engine, Transmission.
• Move the cursor to select "Engine" and press Enter to confirm. The following operation interface appears: F0 - Engine Data, F1 - Catalyst Data, F2 - EGR...
• Move the cursor to select F0 Engine Data and press Enter to enter the following interface: Engine Speed, Ideal Idle Speed, Water Temperature, Intake Air...
• Select one to perform a test.
• Return to "5", move the cursor to select F2 "Special Functions", and press Enter to enter the following interface: Engine Output Control, Transmission...
• Select Engine Output Control and press Enter. The screen will display: Fan Relay, Malfunction Indicator Lamp, Air Conditioning Relay, Canister System, EGR...
• Select to access the corresponding function.

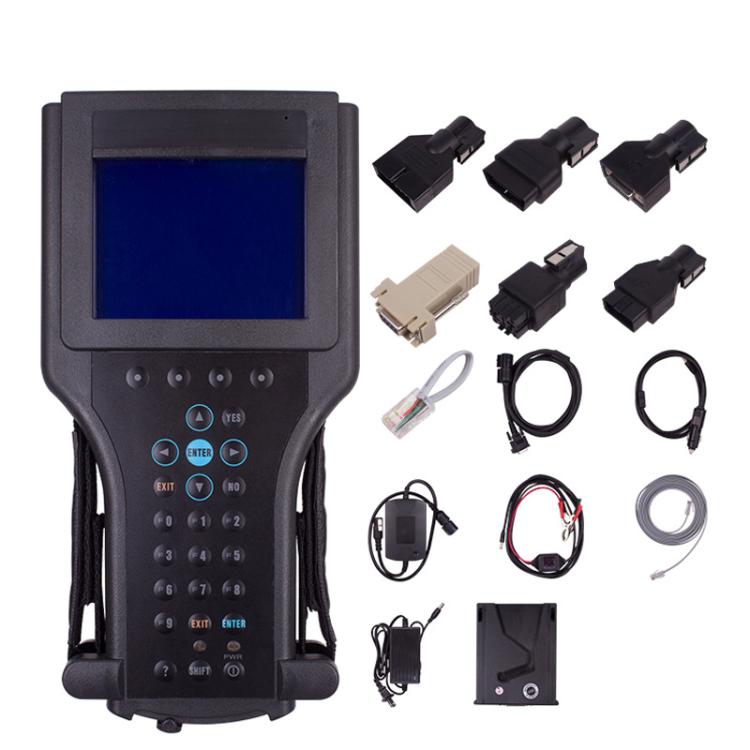

• Tech 2 standard configuration
• Head unit
• GM32M PCMCIA card
• 110V transformer

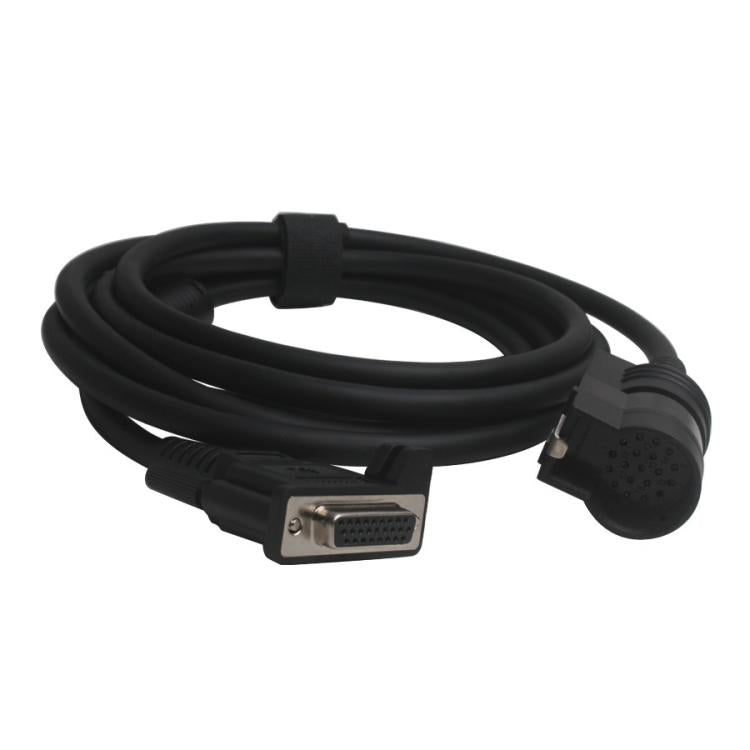

• Data cable, self-test connector

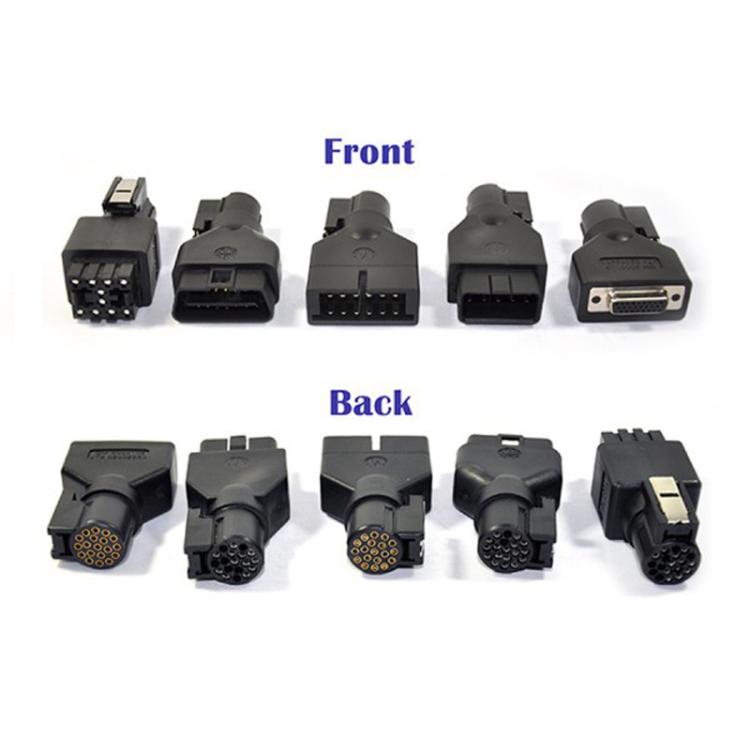

• North American 12/19 Pin connector
• OBD II connector
• Cigarette lighter connection
• Box
• RS232 interface self-test connector

Compatibility: 1991-2013 GM 33.004, 1998-2012 SAAB 148.000, 1999-2012 Holden 147.000, 1999-2013 Holden Export 149.000, 1996-2013 Isuzu K-line 11.530, 1996-2013 Isuzu K-line 11.680...

Package Info: Weight: 3.00kgs / 6.62lb, Size: 35cm * 31cm * 23cm / 13.78inch * 12.2inch * 9.06inch

Original listing title: Tech2 Vehicle Chassis Power System Inspection Scanner, US Plug, For 1991-2013 GM 33.004, For 1998-2012 SAAB 148.000, For 1999-2012 Holden 147.000, For 1999-2013 Holden Export 149.000, For 1996-2013 Isuzu K-line 11.530, For 1996-2013 Isuzu K-line 11.680...
