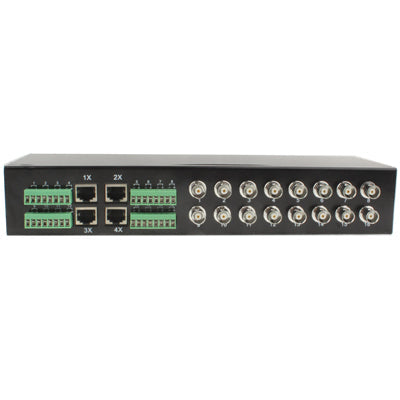

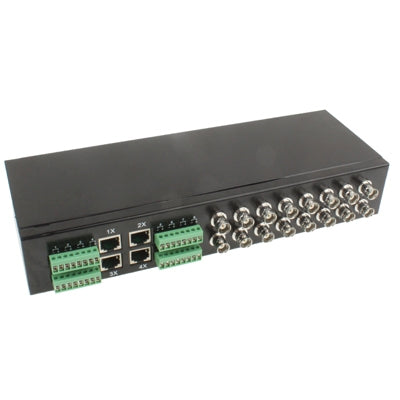

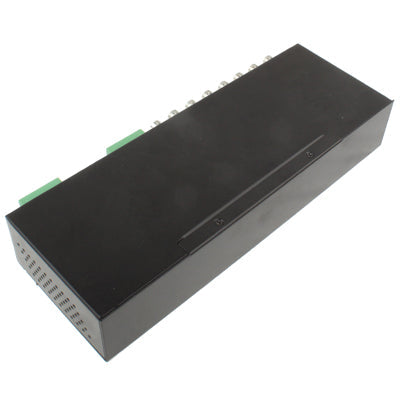

16CH Passive UTP Video Transceiver Rack Mount Style for CCTV – Durable Build, Easy to Use

16CH Passive UTP Video Transceiver Rack Mount Style for CCTV – Durable Build, Easy to Use.

Key Features:

• Product Details:
• 1) 16ch passive video receiver, metal case
• 2) Video transmission via UTP CAT5 cable.
• 3) 10-20% wire costs saved.
• 4) Full-motion CCTV Video at distances up to 330m.
• 5) Outstanding interference rejection and transient protection
• 6) Up to 1500m with any active UTP video receiver
• 7) No power required
• Technical Specifications:
• 1) Frequency response: DC-8MHz
• 2) CMRR (Common Mode Rejection Ratio): 60dB
• 3) Impedance: BNC: 75Ω; RJ45: 100Ω
• 4) Working temperature: -10°C ~ 70°C
• 5) Storage temperature: -30°C ~ 70°C
• 6) Applicable to NTSC, PAL, SECAM and CCIR systems
• 7) Characteristic impedance: 100 Ω ± 20 Ω
• 8) DC loop resistance:18 Ω/100m
• 9) Differential capacitance:62pf/m (Maximum)
• 10) Size: 28.5x11.5x5cm

Package Info: Weight: 1.36kgs / 2.99lb
