16 Channel PWM Servo Motor Controller DIY for Arduino, PCA9685 – TPU

16 Channel PWM Servo Motor Controller DIY for Arduino, PCA9685 – TPU.

Key Features:

• Works with official Arduino boards
• This is an I2C controlled PWM driver board with a built-in clock
• You can use 3.3V MCU to control and drive the output up to 6V
• 6 address select pins allow you to connect 62 driver boards to one I2C bus, total 992 channels of PWM output
• About 1.6KHz frequency modulation PWM output

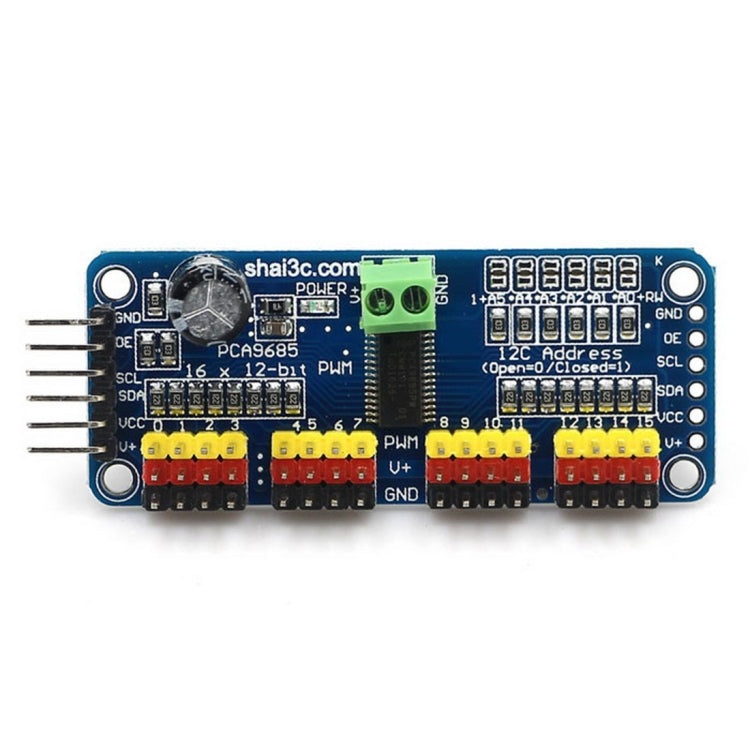

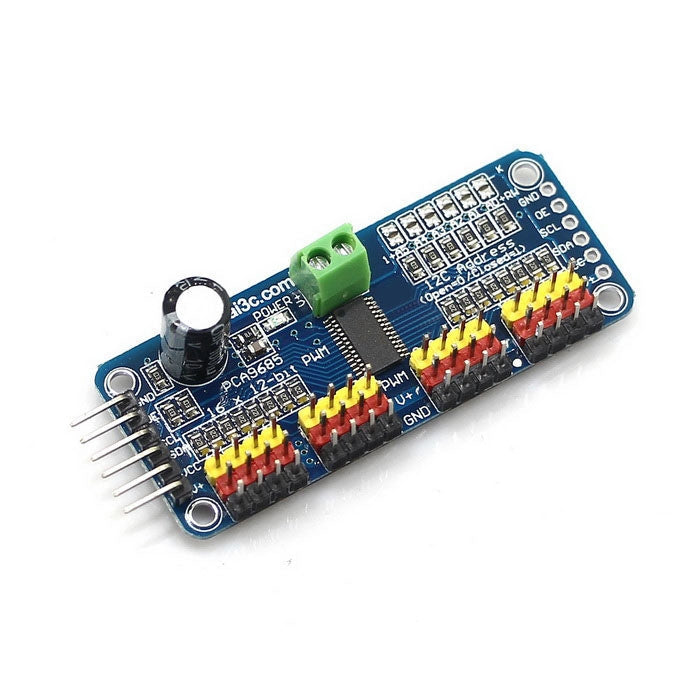

• PCA9685 chip is at the center of the board
• With power input terminal
• With green power indicator light

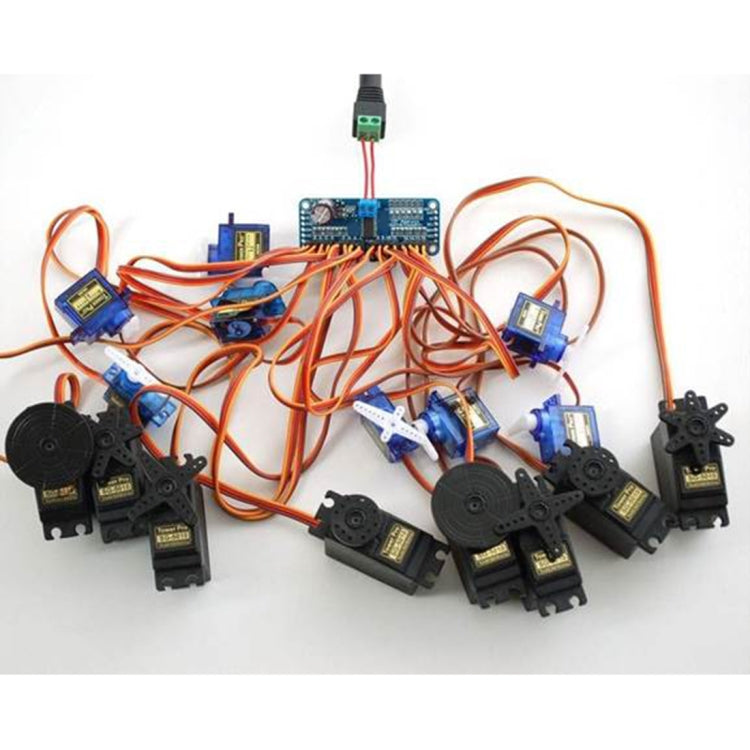

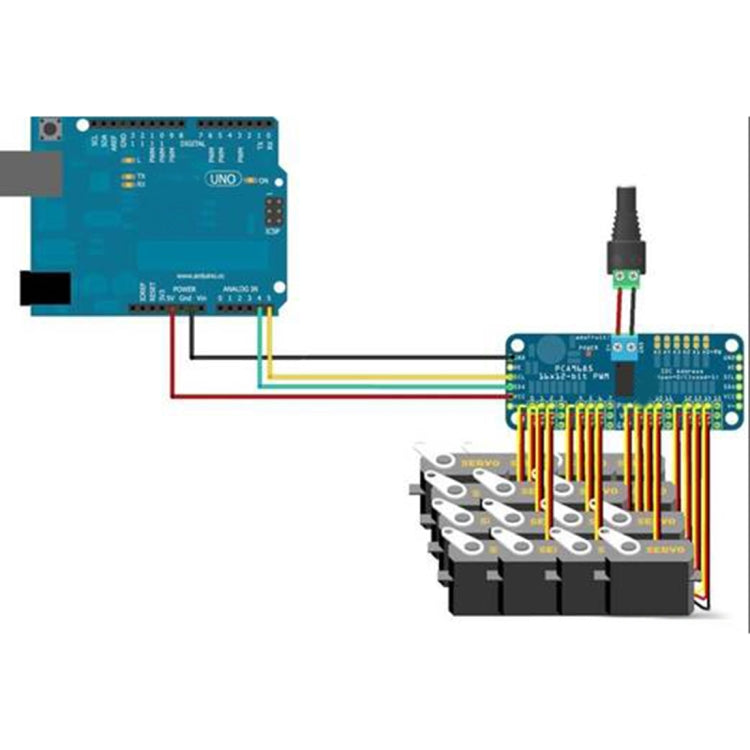

• Convenient to insert total 16 servos at the same time
• With reverse polarity protection for input
• Cascade design
• Put a bulky capacitor on the V+ line
• Put 220 ohm resistance components onto all PWM output lines

Package Info: Weight: 0.03kgs / 0.07lb, Size: 8cm * 5cm * 2.5cm / 3.15inch * 1.97inch * 0.98inch
