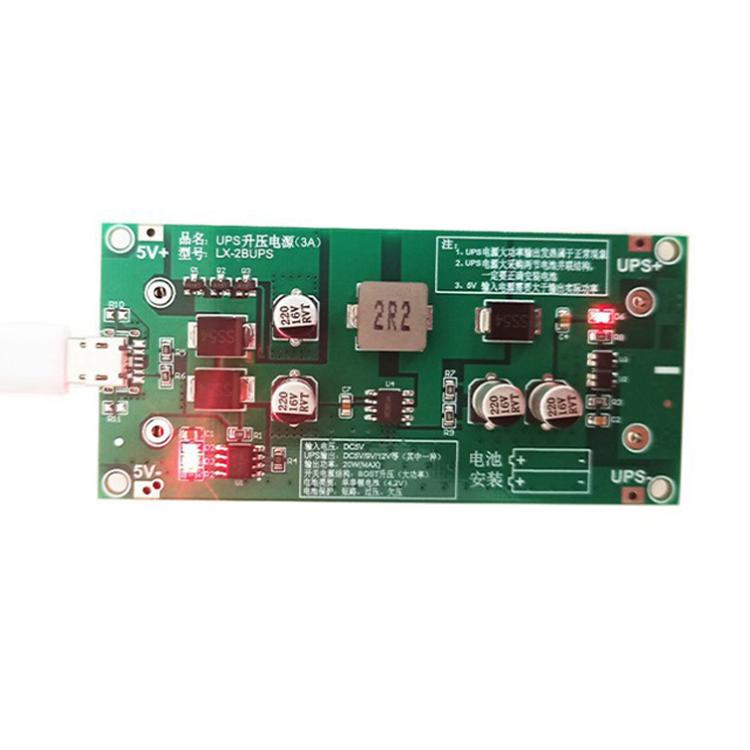

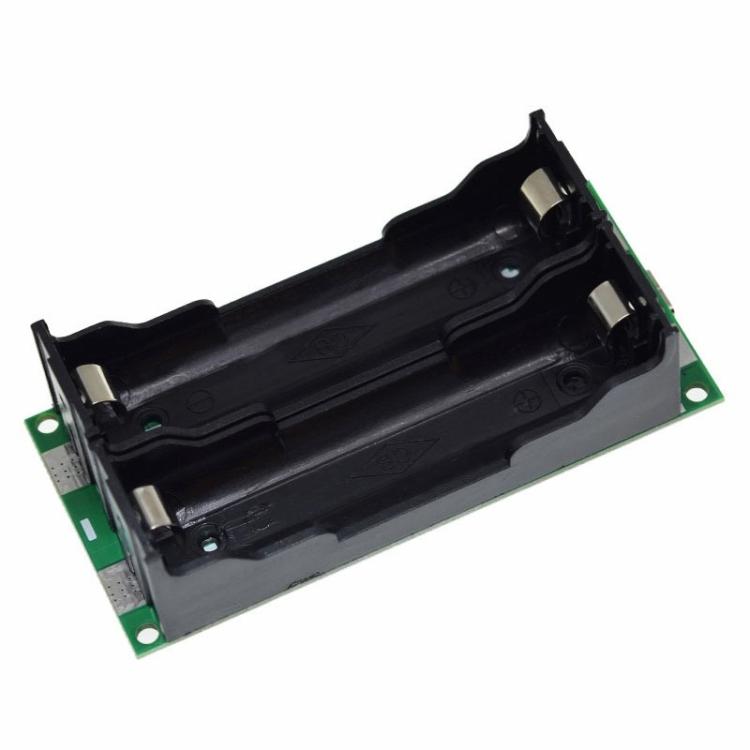

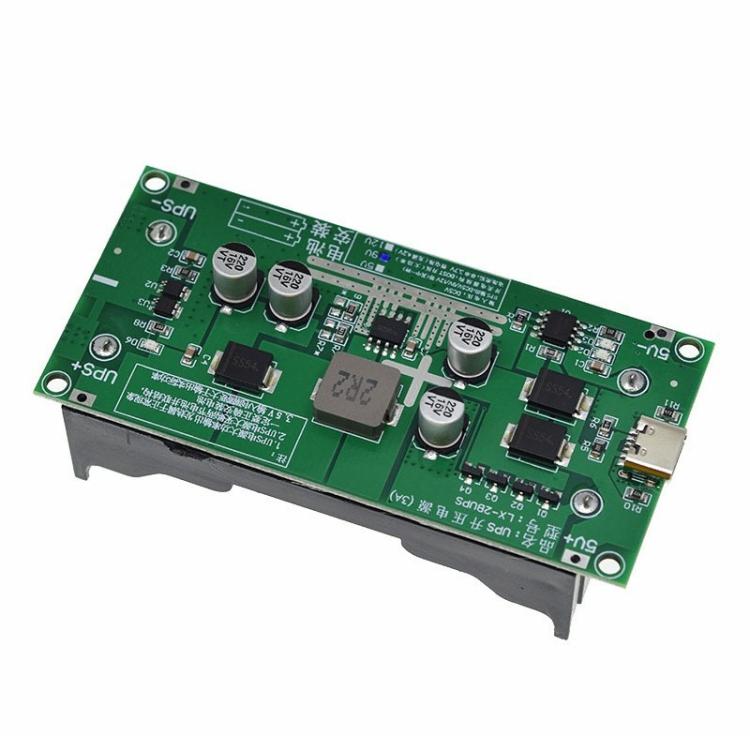

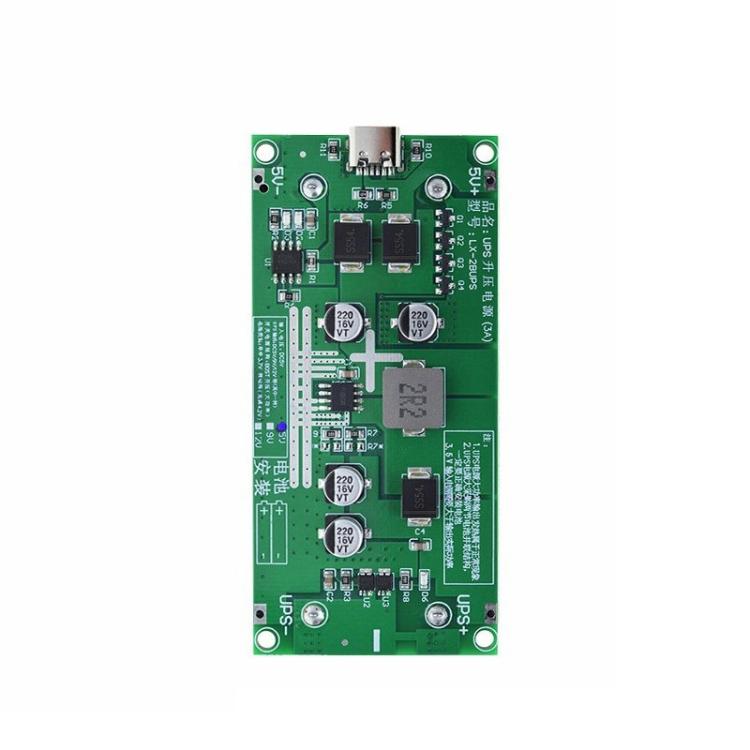

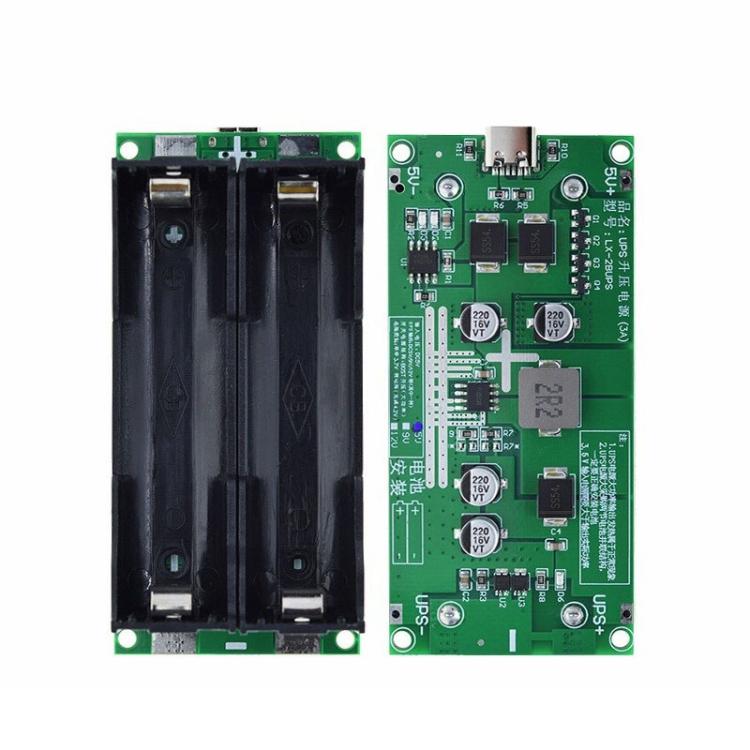

15W 3A High-power UPS18650 Lithium Battery Boost Charging Module, 5V, 9V, 12V – TPU

15W 3A High-power UPS18650 Lithium Battery Boost Charging Module, 5V, 9V, 12V – TPU.

Key Features:

• Notes:
• There are MOS and other components on the board, which are easily damaged by soldering iron induction electricity or static electricity. Please make sure...
• Be careful not to install the battery upside down, otherwise the board may burn.
• Please choose a power supply with sufficient power. Only in this way can the board work properly.
• The board power supply should not be higher than 5V.
• Please do not modify the board without technical confirmation.
• It is normal for the module to heat up when working at high power, just pay attention to fanning.
• Product Introduction:
• This product is suitable for power-off equipment without power outages. When there is power, use external power supply, and automatically switch to battery...
• If the USB interface is used for power supply, it is recommended to use the Type-c interface. Compared with the microUSB interface, the current that can...
• Suitable for routers, cameras, development boards and other devices, seamlessly switch to battery power when power is off, and keep the network connected...
• Seamless switching between external power supply and battery dual power supply (no delay)
• Uninterrupted power supply, automatic start when power is off, automatic charging when incoming call.
• Output voltage 5V/9V/12V optional, other voltages can be customized.
• Four practical functions: lithium battery charging, lithium battery protection, boost output, and UPS switching.
• Two-color LED indicates charging status, the green light is always on when full, and charging stops automatically.
• Type-C interface, large current.

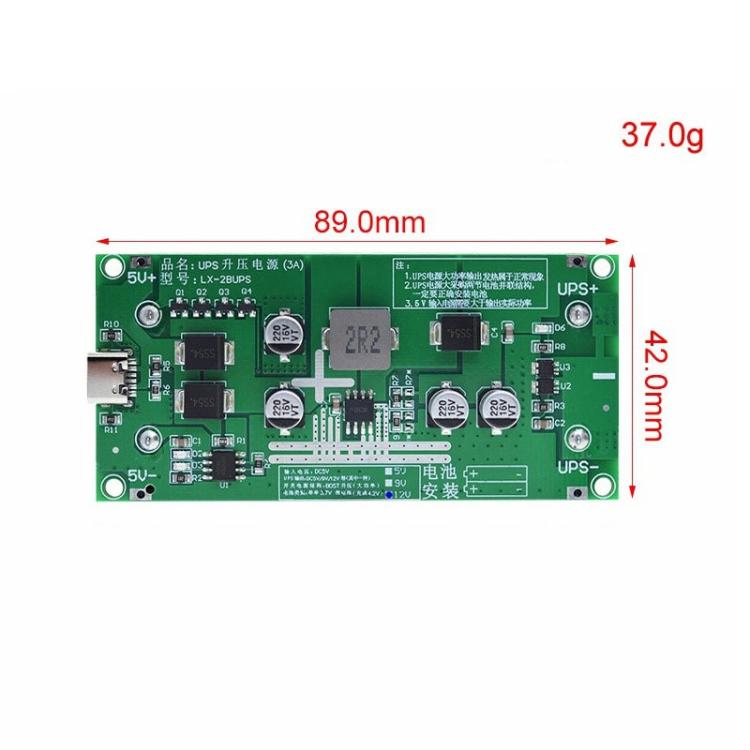

• Product size: 89 x 42mm
• Weight: about 37g
• Function description:
• UPS function: When the power supply is powered, the power supply directly supplies power to the load through the boost circuit, and charges the lithium...
• Boost circuit: peak power up to 20W, rated power up to 15W, BOST boost circuit, built-in 12A high current MOS, efficiency up to 96%, module static power...
• (Load normal recommendation <15W. Output 5V: current 3A, output 9V: current 1.6A, output 12V: current 1.2A)
• Lithium battery protection overcharge, over discharge, over temperature, over current protection (if short-circuited by mistake, it will enter the...

Package Info: Weight: 0.06kgs / 0.14lb, Size: 12cm * 7cm * 4cm / 4.72inch * 2.76inch * 1.57inch
