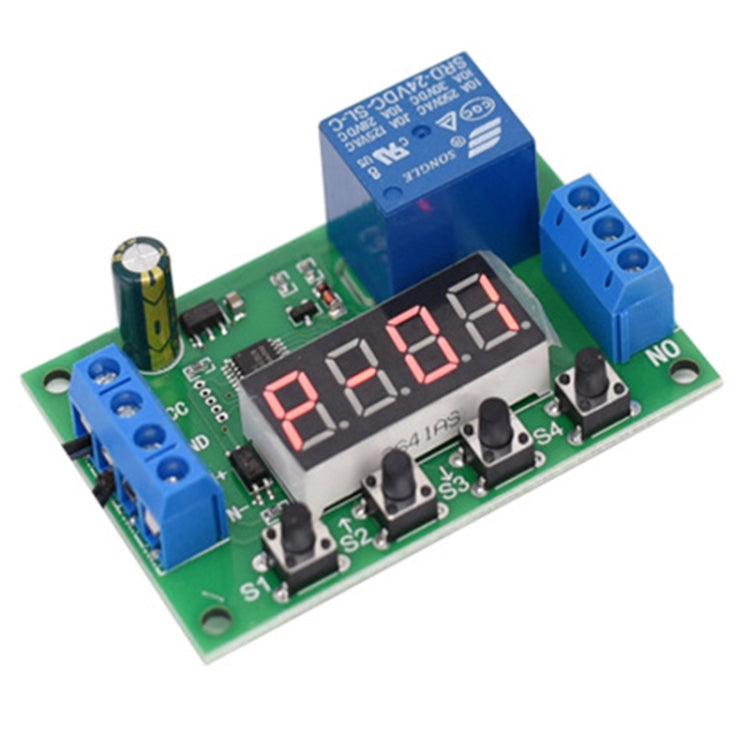

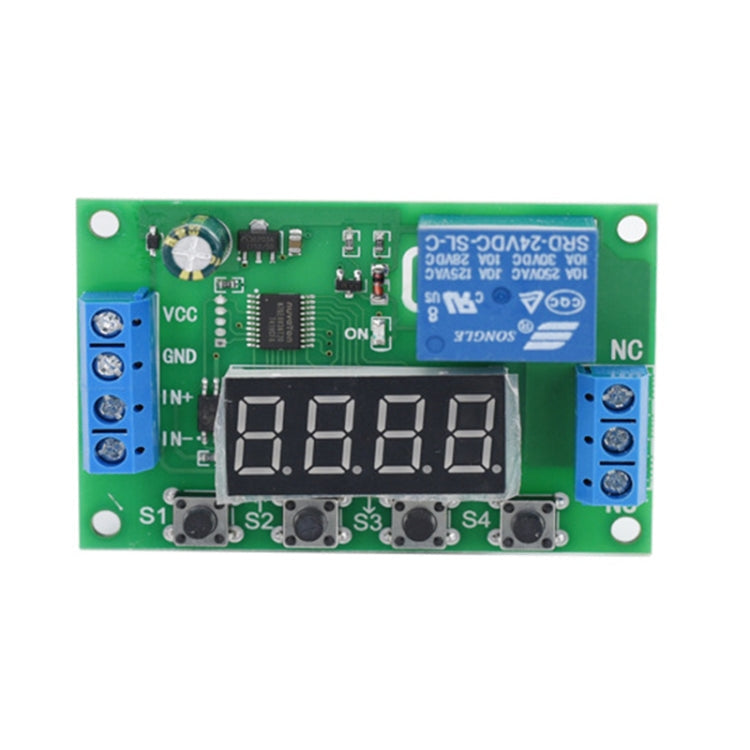

12V Time Relay Module Trigger OFF / ON Switch Cycle Timing Relay Board, 12V – TPU

12V Time Relay Module Trigger OFF / ON Switch Cycle Timing Relay Board, 12V – TPU.

Key Features:

• Specifications
• Supply voltage: DC 12V
• Trigger terminal voltage: DC 5~30V (can also be triggered by button)
• Relay control current: 10A

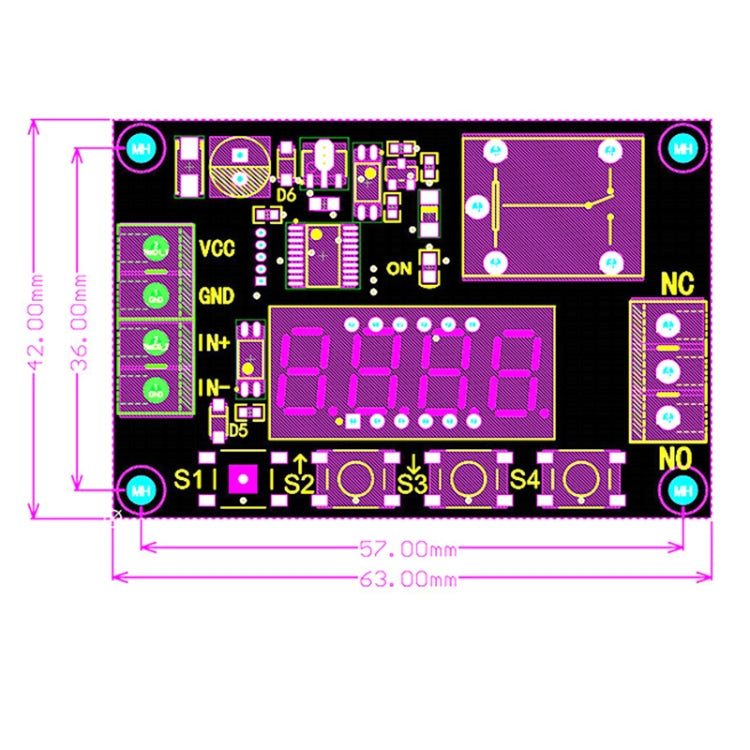

• Module size: 63 x 42 x 20mm (length, width and height)
• Specifications Set
• Press and hold the S1 key and do not let go, after 0.5 seconds, the display will display P-xx, press S2 and S3 to change the working mode.
• After selecting the working mode, short press the S1 key to enter the A time setting, and the screen displays Axxx. At this time, press the S2 and S3 keys...
• After setting the A time, press the S1 key to set the B time, and the screen displays bxxx. At this time, press the S2 and S3 keys to modify the B time...
• After setting the B time, press the S1 key for the last time to exit the setting state and save all parameters.
• About The Product
• Multifunctional time relay module, a variety of working voltages are optional, DC12V

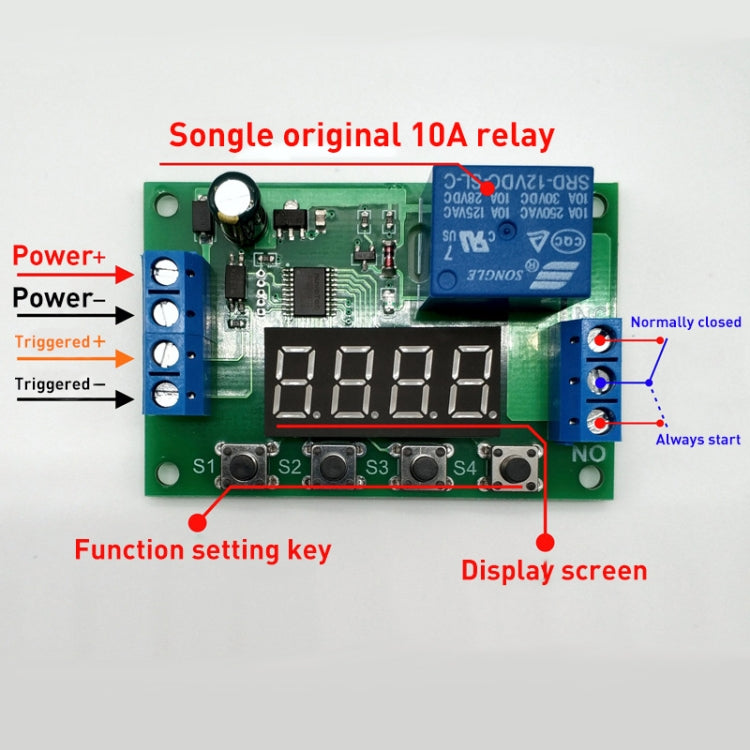

• The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of...
• There are as many as 27 working modes to meet various testing and automatic control applications, and the delay time is adjustable from 0.01 seconds to 999...
• The trigger port can be triggered by a voltage signal, or it can be triggered by a button.
• Point Position
• Ax.xx decimal point is in the hundreds place, the time range is 0.01~9.99 seconds
• Axx.x decimal point is in ten place, time range is 0.1~99.9 seconds
• Axxx. The decimal point is in the one place, the time range is 1~999 seconds
• Axxx has no decimal point, the time range is 1~999 minutes
• Turn off the display: In the non-setting state, press the S4 key to turn off the display, and press it again to turn it on again.

Package Info: Weight: 0.06kgs / 0.13lb, Size: 10cm * 10cm * 3cm / 3.94inch * 3.94inch * 1.18inch
