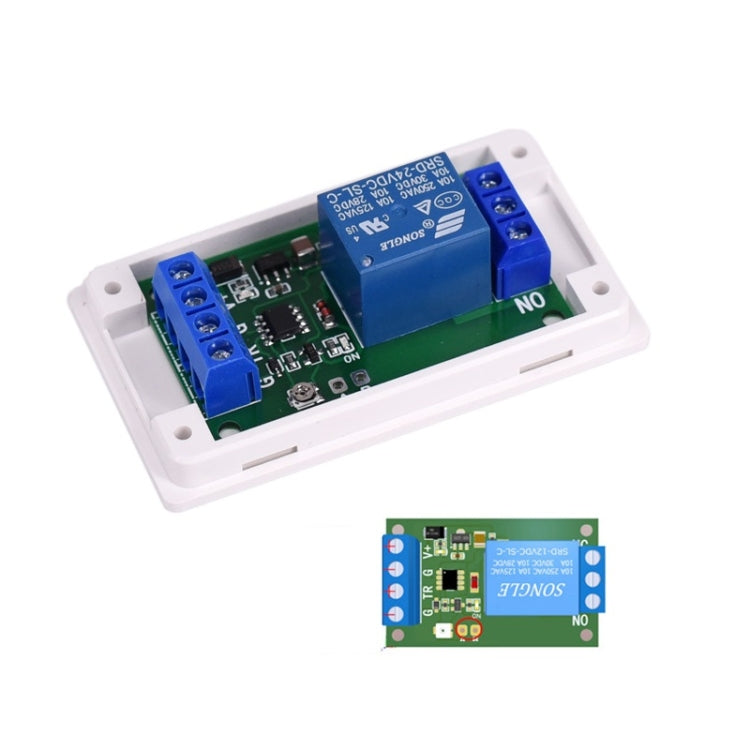

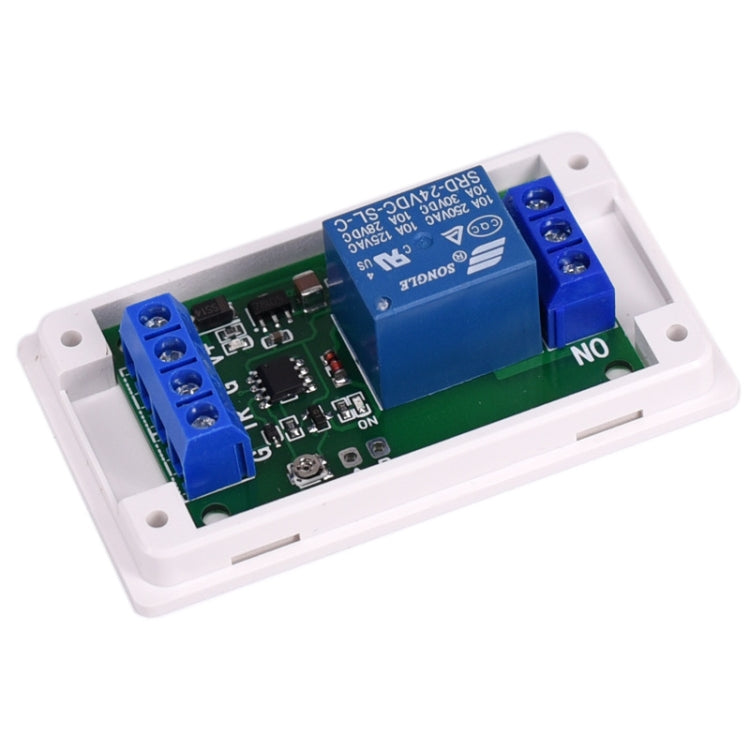

12V Protected Start Delay Relay Module, 12V – TPU

12V Protected Start Delay Relay Module, 12V – TPU.

Key Features:

• Power supply current: 10A
• Power supply voltage: 12v/24v
• Use: Time delay

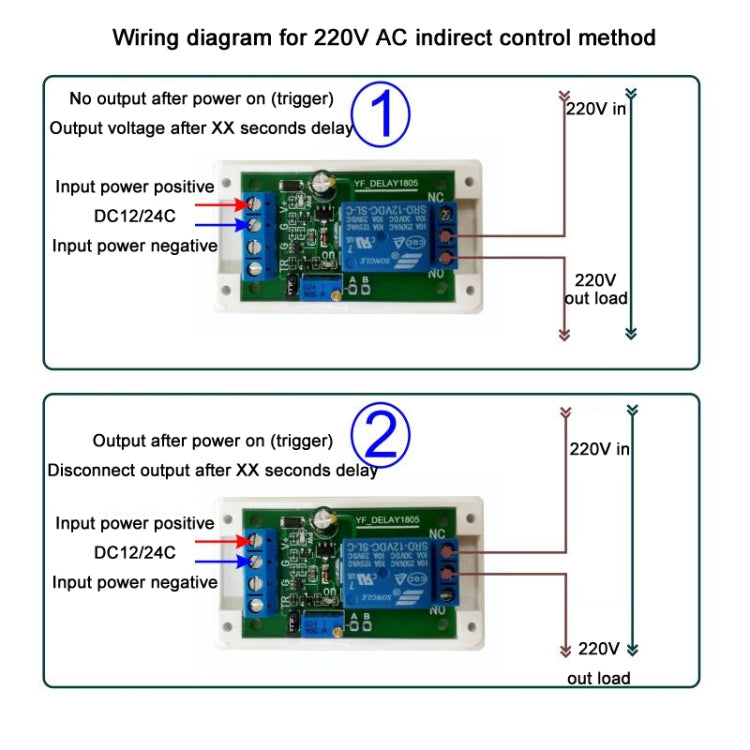

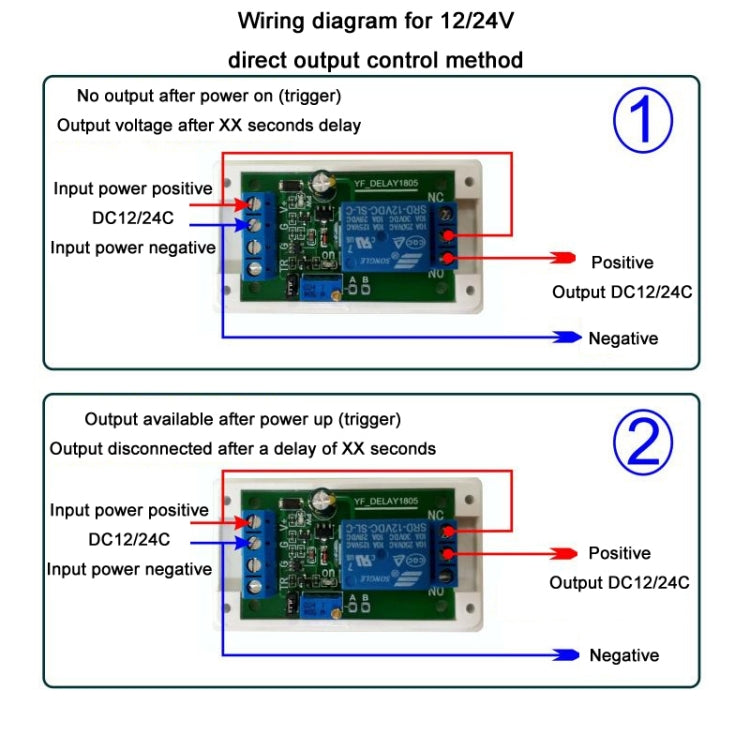

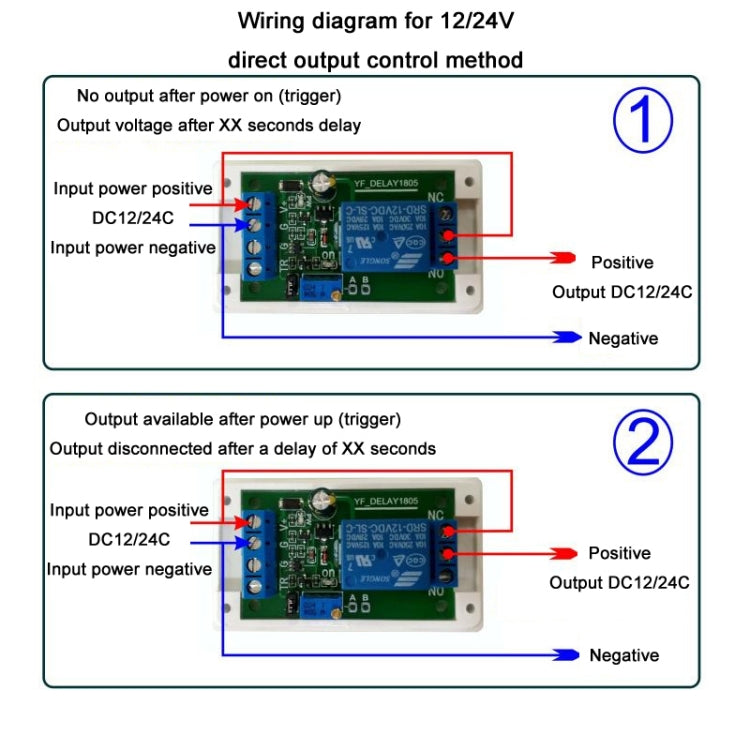

• Module to achieve a certain time delay after power on and then output voltage / or off output
• Delay time 1~120 seconds adjustable, can be used for car recorder delay on, faucet after the water delay off and other applications
• With power supply reverse protection, reverse connection will not burn

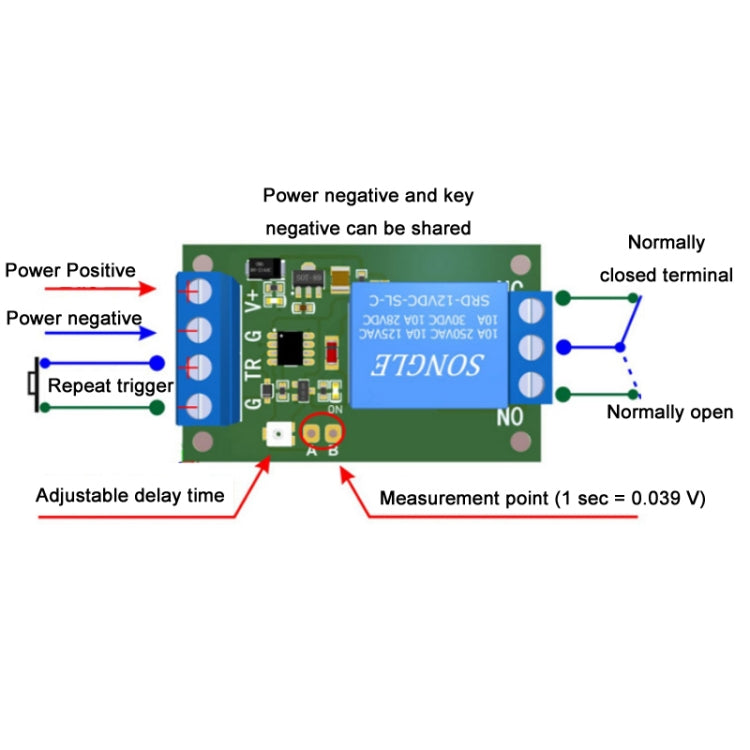

• With repeat trigger button interface, can be connected to a button to achieve re-trigger the delay time, without the need to re-power
• To adjust the delay time: the module is connected to the power supply, using a multimeter voltage class to measure the voltage value of the two points AB,...
• Repeated triggering without power: If the application requires repeated triggering without power, a self-resetting button can be attached to the TR and G...
• Dimensions: 52.8x32x18mm

Package Info: Weight: 0.08kgs / 0.19lb, Size: 7cm * 4cm * 3cm / 2.76inch * 1.57inch * 1.18inch
