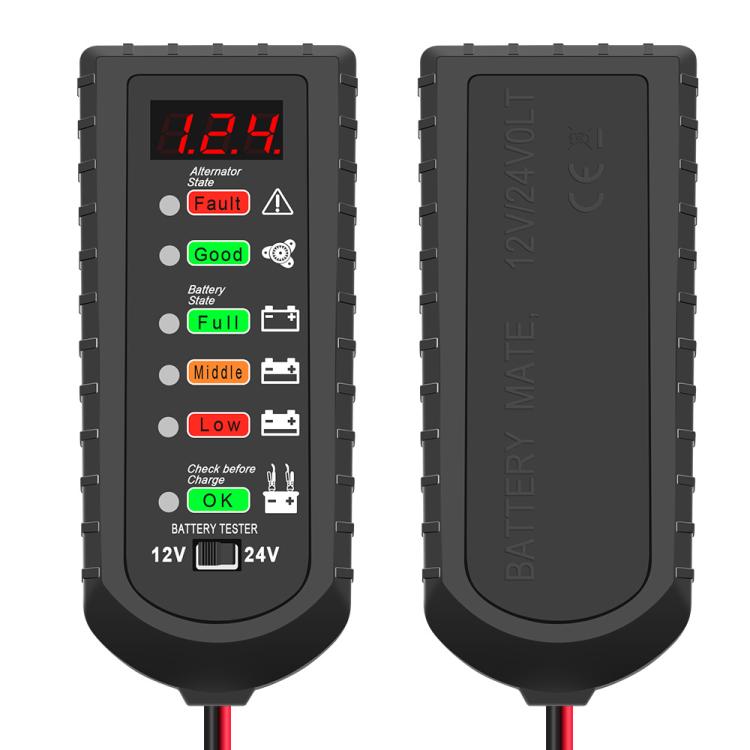

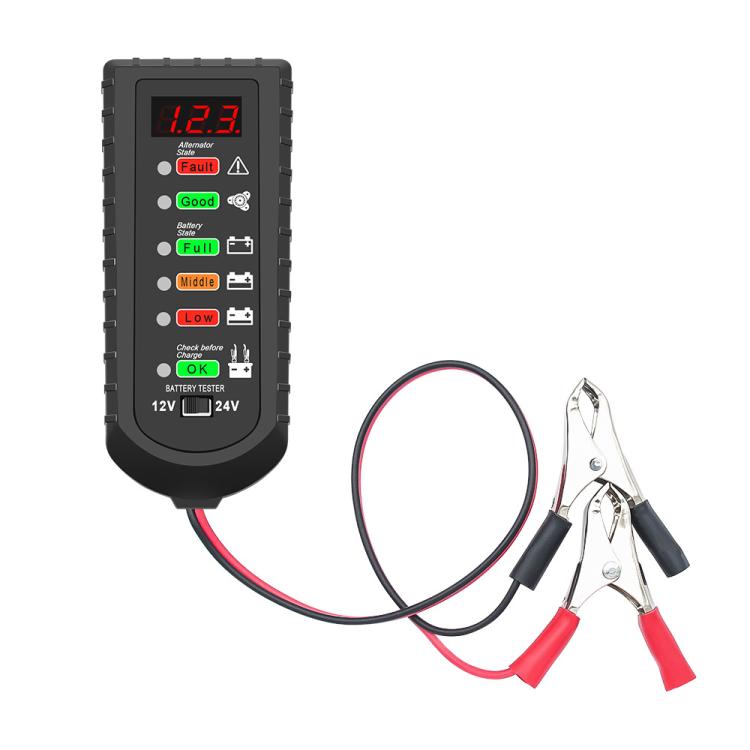

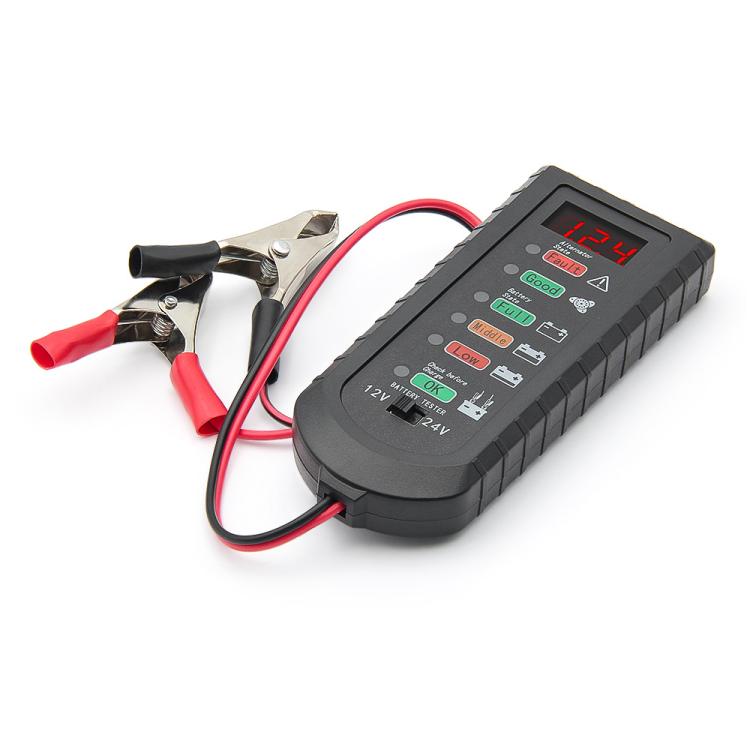

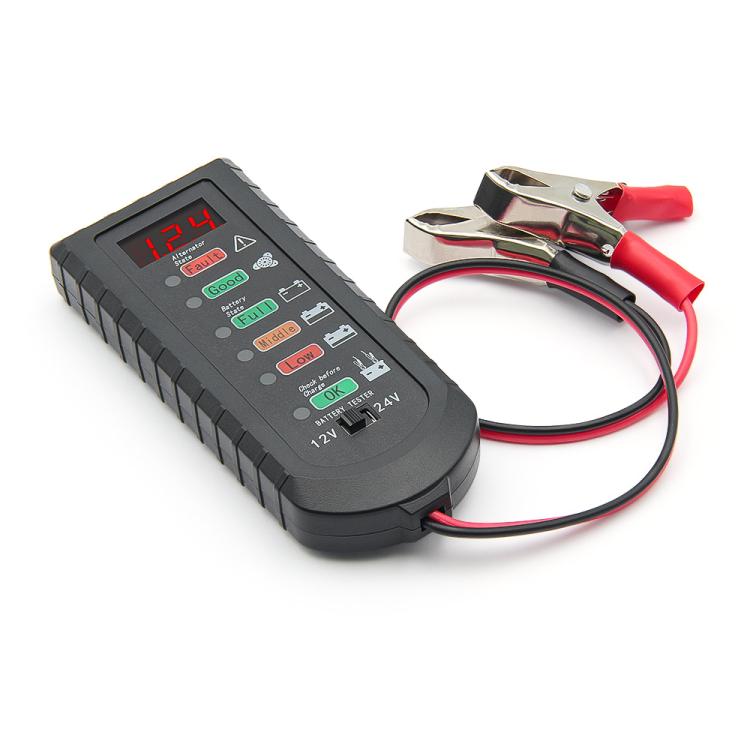

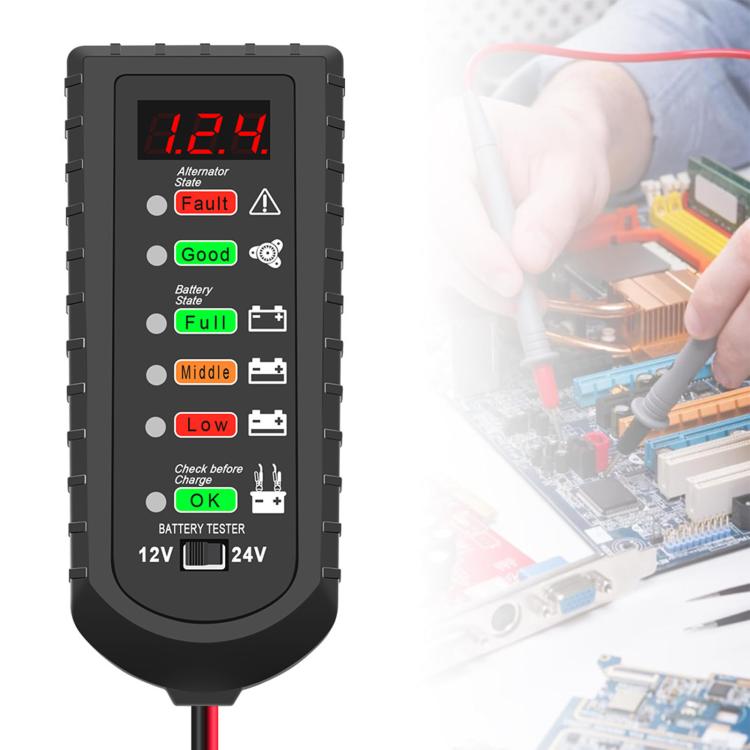

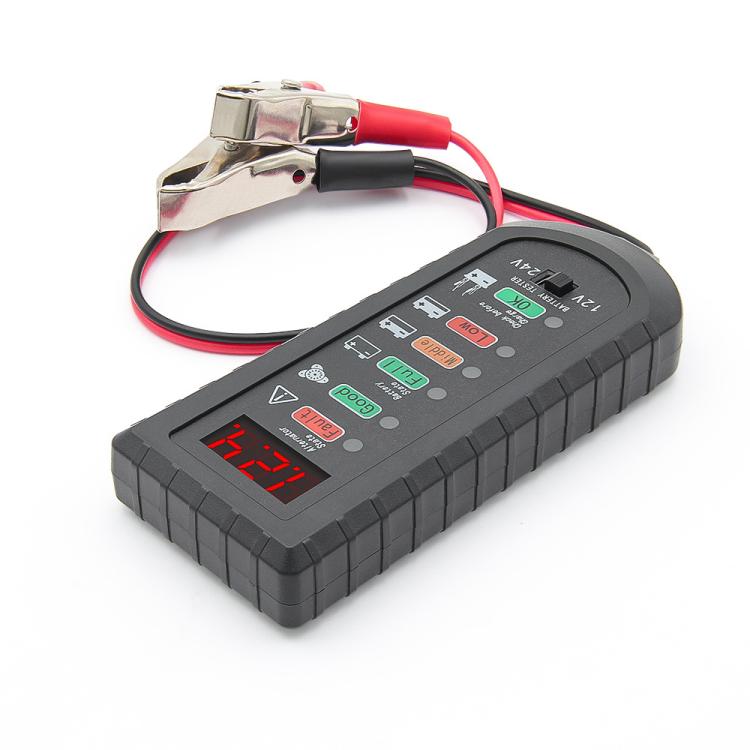

12V / 24V Automotive Battery Voltage Tester – Durable Build, Easy to Use

12V / 24V Automotive Battery Voltage Tester – Durable Build, Easy to Use.

Key Features:

• Connect To 12V Car Battery
• When connected to a 12V car battery, different voltages will display different signals:
• Switch to 12V
• 0V-4.5V: The product cannot start, please replace the battery.
• 4.5V-11.3V: The OK light flashes, and the other lights are off. The higher the voltage, the more frequent the flashing. When it reaches 11.3V, the OK light...
• 11.3V-12V: The low light flashes, and the OK light is on. The higher the voltage, the more frequent the flashing. When it reaches 12V, the low light is on,...
• 12V-12.5V: The middle light flashes, and the low light is on. The higher the voltage, the more frequent the flashing. When it reaches 12.5V, the middle...
• 12.5-13.4V: Full beam flashes, center beam is on. The higher the voltage, the faster the flashing frequency. Upon reaching 13.4V, the full beam is on and...
• 13.4V-14.4V: Good beam flashes, full beam is on. The higher the voltage, the faster the V. Upon reaching 14.4V, the good beam is on and the other lights are...
• 14.4V-15.5V: Fault lights are flashing, good beam is on. The higher the voltage, the faster the flashing frequency. Upon reaching 15.5V, the fault lights...

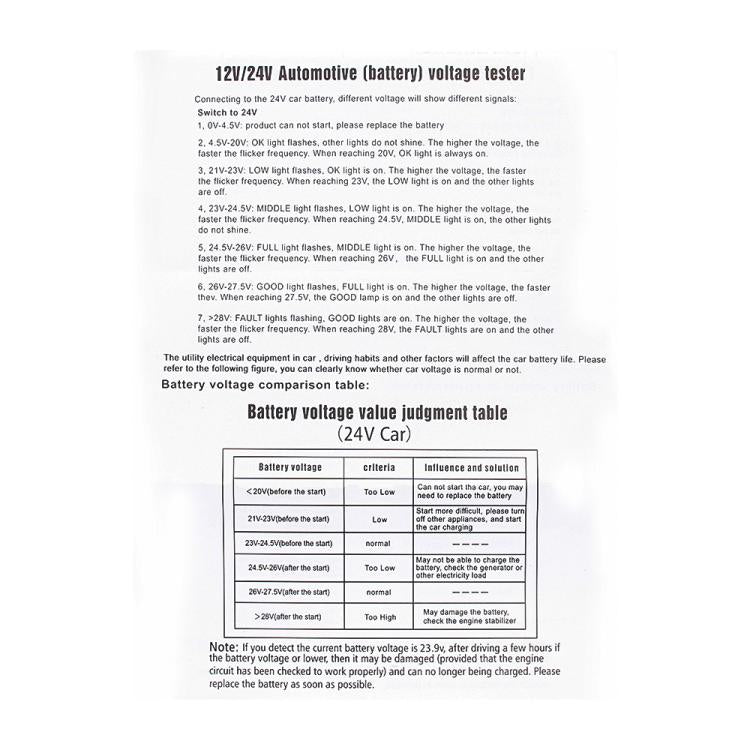

• Connect To 24V Car Battery
• Connecting to the 24V car battery, different voltage will show different signals: Switch to 24V
• 0V-4.5V: product can not start, please replace the battery
• 4.5V-20V: OK light flashes, other lights do not shine. The higher the voltage, thefaster the flicker frequency. When reaching 20V, OK light is always on.
• 21V-23V: LOW light flashes, OK light is on. The higher the voltage, the fasterthe flicker frequency. When reaching 23V, the LOW light is on and the other...
• 23V-24.5V: MIDDLE light flashes, LoW light is on. The higher the voltage, thefaster the flicker frequency. When reaching 24.5V, MIDDLE light is on, the...
• 24.5V-26V: FULL light flashes, MiDDLE light is on. The higher the voltage, thefaster the flicker frequency. When reaching 26V, the FULL light is on and the...
• 26V-27.5V: GOOD light flashes, FuLL light is on. The higher the voltage, the fasterthev. When reaching 27.5V, the GOOD lamp is on and the other lights are off.
• Greater than 28V: FAULT lights flashing, GOOD lights are on. The higher the voltage, thefaster the flicker frequency. When reaching 28V, the FAULT lights...
• The utility electrical equipment in car , driving habits and other factors will affect the car battery life.

Package Info: Weight: 0.07kgs / 0.16lb, Size: 15cm * 6cm * 5cm / 5.91inch * 2.36inch * 1.97inch
