Option

12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch, Delay Circuit Switch – TPU.

Key Features:

  • Working voltage: 6-30V power supply

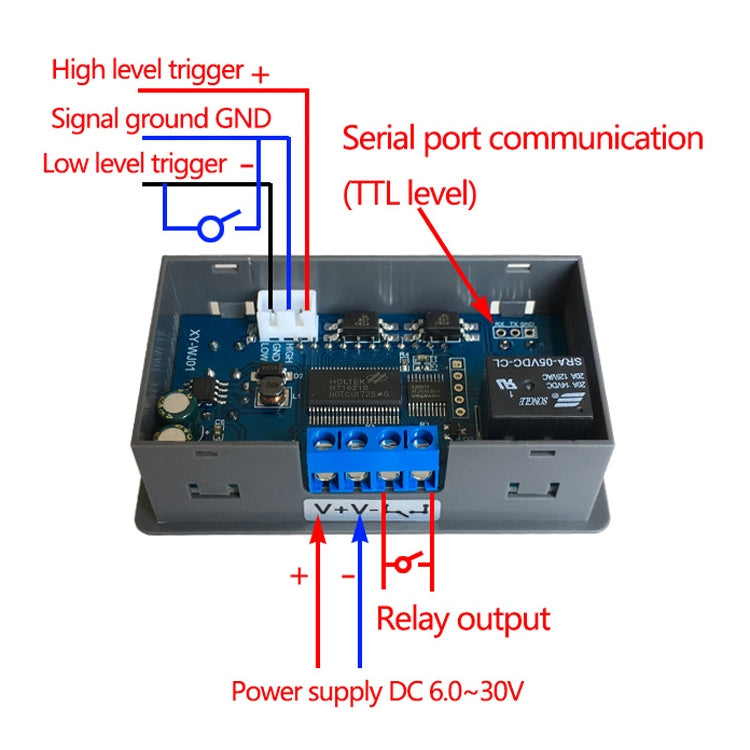

  • Trigger signal source: high level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch)

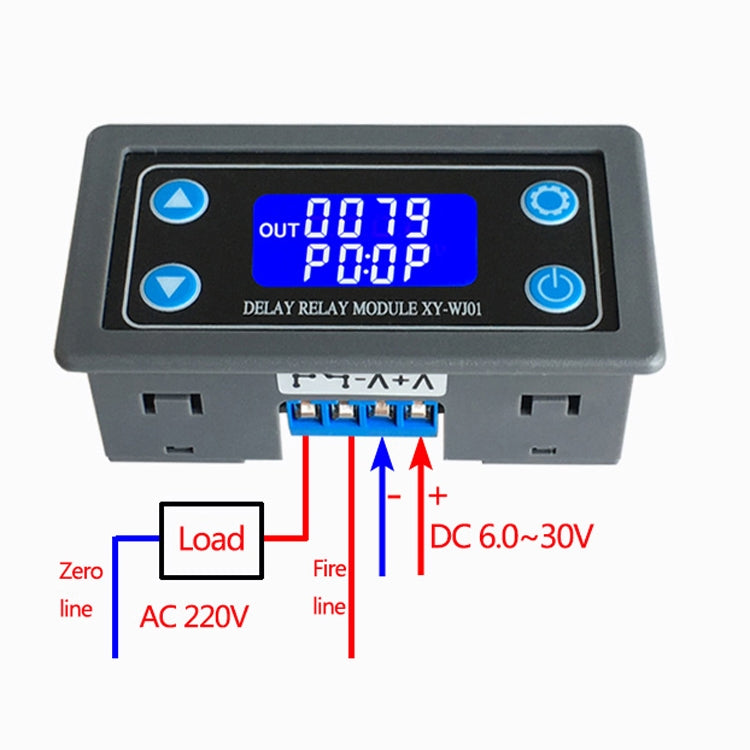

  • Output capability: it can control equipment within DC 30V10A or AC 220V5A
  • Quiescent current: 15mA
  • Working current: 50mA
  • With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters to be remembered after power off
  • Timing range: 0.01s-9999min
  • Weight: about 45g

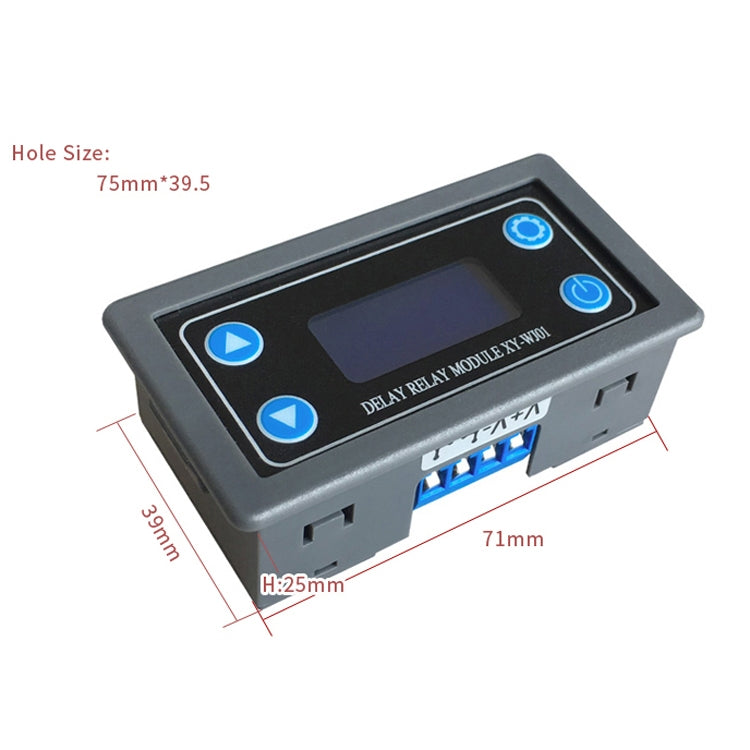

  • Size: about 7.1x3.9x2.5cm
  • Features:

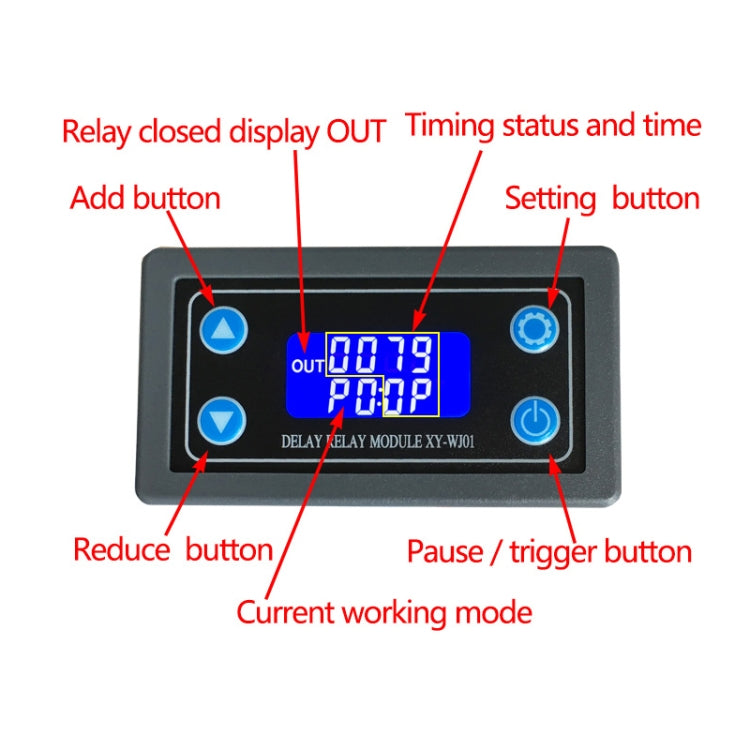

  • With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical
  • Support button trigger control, high and low level trigger, switch control, suitable for most occasions
  • Wide voltage power supply (6-30V), easy to use
  • Support UART data upload and parameter setting
  • One-key pause function, with reverse connection protection, reverse connection will not burn
  • Added sleep mode. after enabling, if there is no operation for about 5 minutes, the LCD backlight will be automatically turned off, and any key can be woken up.
  • Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately
  • All setting parameters are automatically saved after power off

Package Info: Weight: 0.06kgs / 0.13lb, Size: 10cm * 7cm * 5cm / 3.94inch * 2.76inch * 1.97inch
