100W 2 In 8 Out Power Amplifier Loudspeaker Box Switcher – TPU

100W 2 In 8 Out Power Amplifier Loudspeaker Box Switcher – TPU.

Key Features:

• Do you have trouble at that how to connect 2 sets power amplifier and 8 sets loudspeakers?
• Do you have trouble at that make 2 sets power amplifier and 8 sets loudspeakers sounding at the same time?
• One strong power amplifier and loudspeaker distribute device able to solve the above problems,

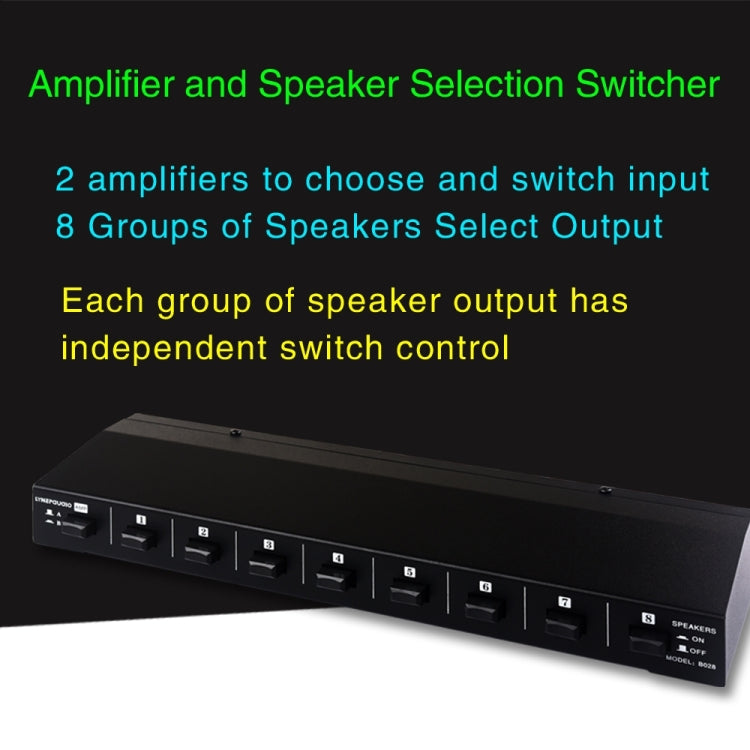

• 8 sets stereophonic loudspeaker key type switch select output (8 sets loudspeakers able to be independently start or close)
• 8 sets stereophonic loudspeaker able to send sound at the same time, also able to close one set loudspeaker or multiply sets loudspeaker independently,...
• Signal input provide the power amplifier signal idle protect function.

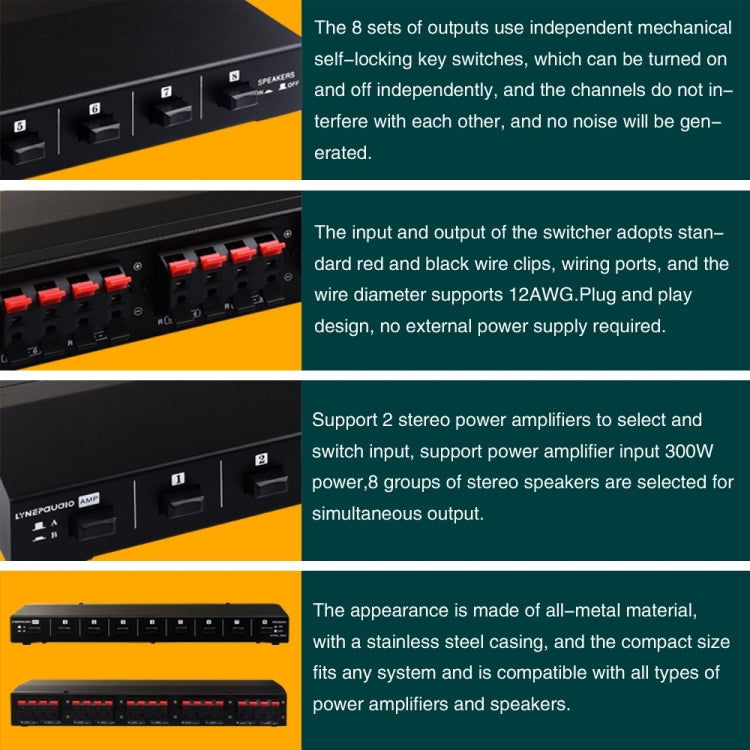

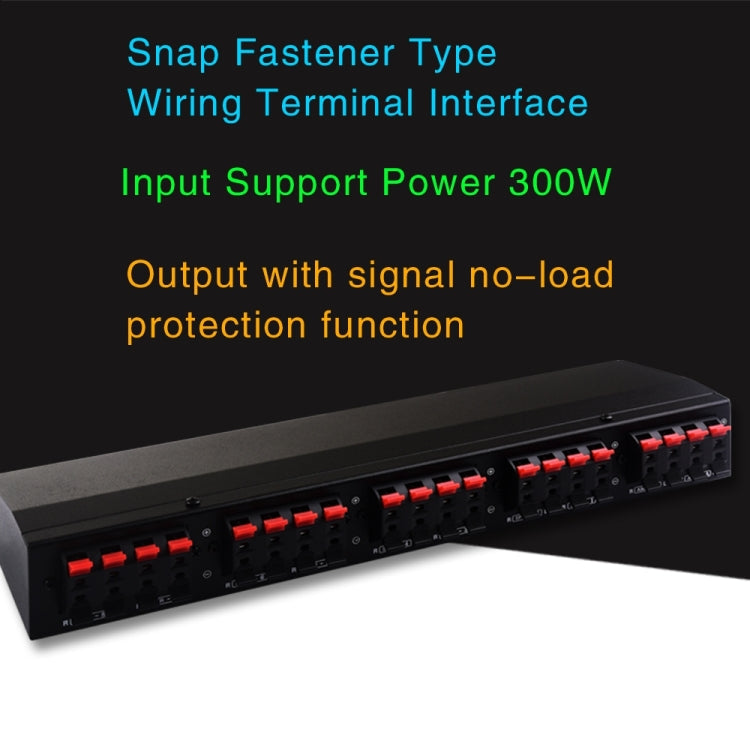

• Adopt convenient snap fastener type wiring terminals, able to accept up to 12AWG loudspeaker wires.
• Input passageway support up to 300W power amplifier and all types loudspeakers from 4 ohm to 16 ohm.
• Each one passageway output manually select switch, able to be used once inserted, stably shift signal, not generate any disturb or noise among the passageways.
• Compact design and solid metal shell, simple installation, the product neednot additionally connect power supply.

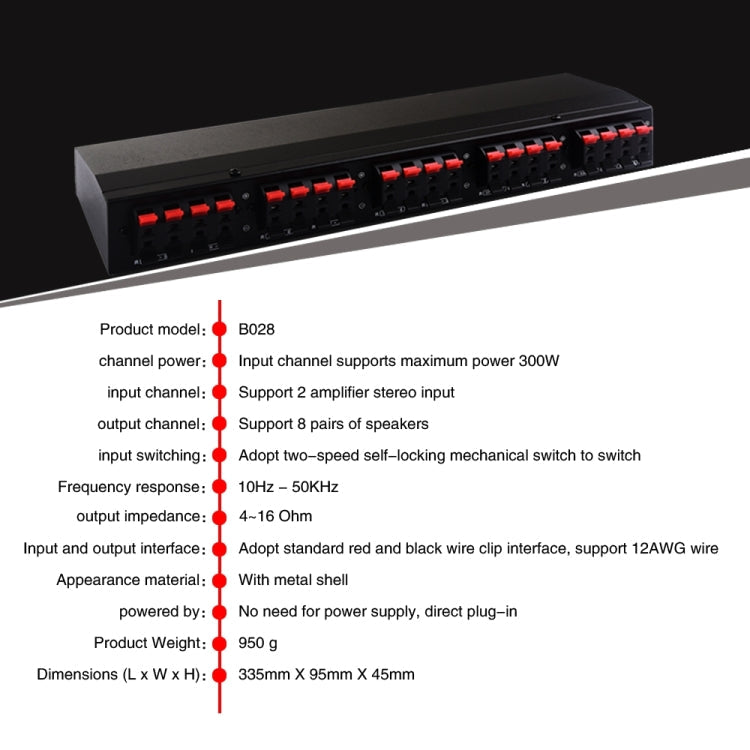

• Product Parameter:
• Material: Metal
• Interface: Snap fastener type wiring terminal
• Power supply: Not need additionally connect power supply, able to be used once inserted
• Compatible all types power amplifiers and loudspeakers

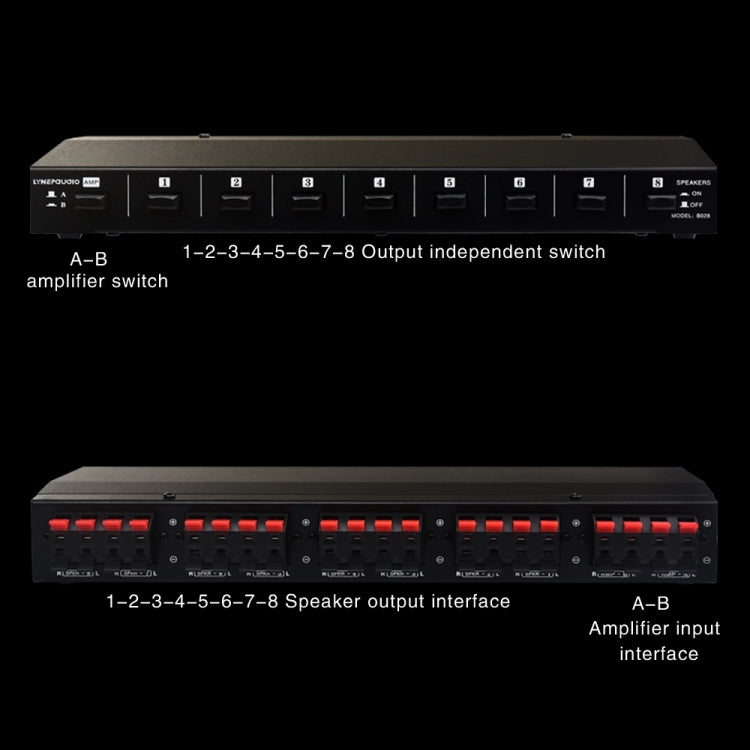

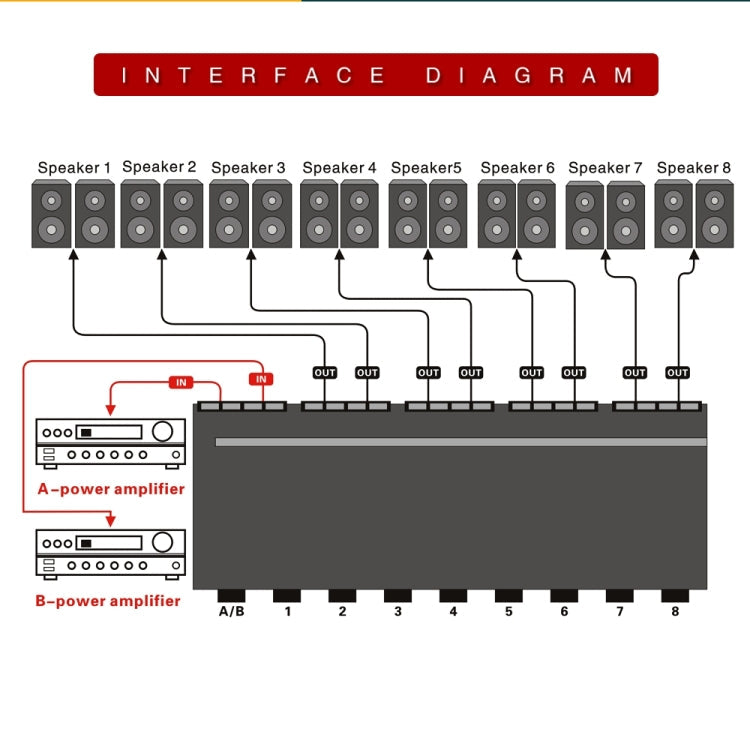

• Connect the power amplifier to A and B position.
• Connect the loudspeaker to 1-2-3-4-5-6-7-8 position respectively.
• Open your power amplifier stereophonic equipment, the product need not additionally connect power supply.
• Input: 2 sets input (wiring terminal)
• Output: 8 sets output (wiring terminal)
• Power: Input passageway support 300W
• Metal materials, fine steel shell, compact size suitable to any system.
• Frequency responding: 10Hz - 50KHz.
• Single product net weight: 0.95 kg
• Weight with package: 1.08 kg

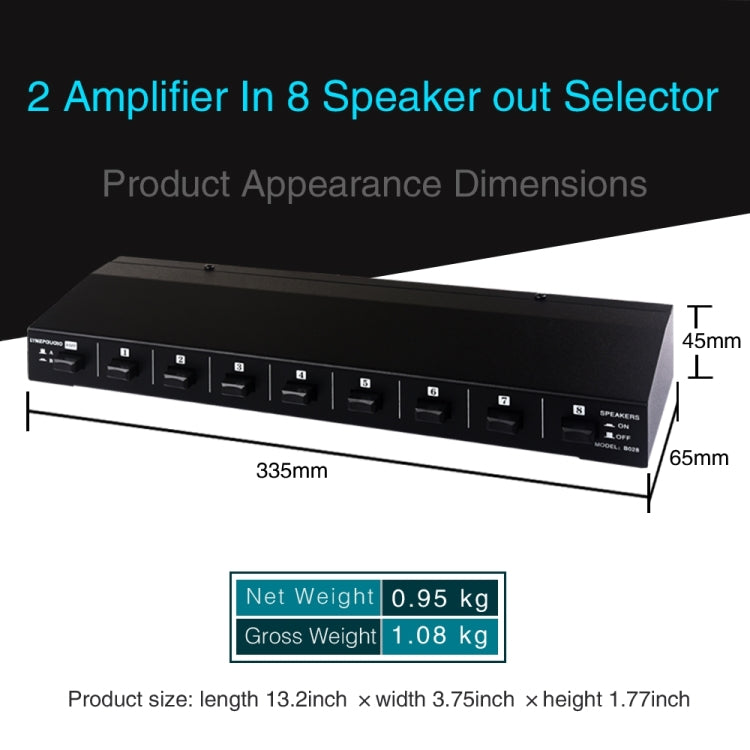

• Product size: Length 335mm x width 95mm x height 45mm
• Packed size: Length 359mm x width 155mm x height 67mm

Package Info: Weight: 1.08kgs / 2.39lb, Size: 36cm * 16cm * 7cm / 14.17inch * 6.3inch * 2.76inch
